VMC3020 Vertical CNC Milling Machine Frame XYZ Axis 210*210*320 Cast Iron Machine Tool Body Machining Center Custom OEM ODM DIY

Description:

VMC3020 CNC vertical mill bare frame, X310 Y210 Z320 travel, 3‑axis heavy‑duty 20 linear guide & ball screw, cast iron machine body, support OEM ODM for DIY CNC machining center build.


down load to pdf

product details

  • ✅ Solid Cast‑Iron Machine Bare Frame：RYA3020 VMC3020 vertical CNC milling bare machine frame, X‑axis 310mm Y‑axis 210mm Z‑axis 320mm travel, table size 300*200mm, gross shipping weight approx 197kg, stable structure for DIY CNC machining center assembly.
  • ✅ Heavy‑Duty 3‑Axis Transmission Parts：Equipped with 3‑axis heavy‑duty 20 linear guideways and 20 ball screws, three‑axis guideways with side preload, reduces vibration, improves running straightness and positioning accuracy.
  • ✅ Standard Servo & Spindle Mount Base：XY axes adopt HM15‑60 integrated servo motor base, Z‑axis HM15‑80 servo base, 80‑size standard spindle clamping housing, convenient for servo motor and spindle installation.
  • ✅ Flexible Custom OEM & ODM Support：Bare machine body without electric control system, ideal for DIY builders, labs and small‑factory modification. Accept OEM ODM custom service for your CNC machine project.

  • ✅ Pre‑Assembled Mechanical Parts：Guide rails and ball screws are pre‑mounted before shipment. You only need to fit motors, spindle, drivers and controller to complete your vertical CNC milling machine.

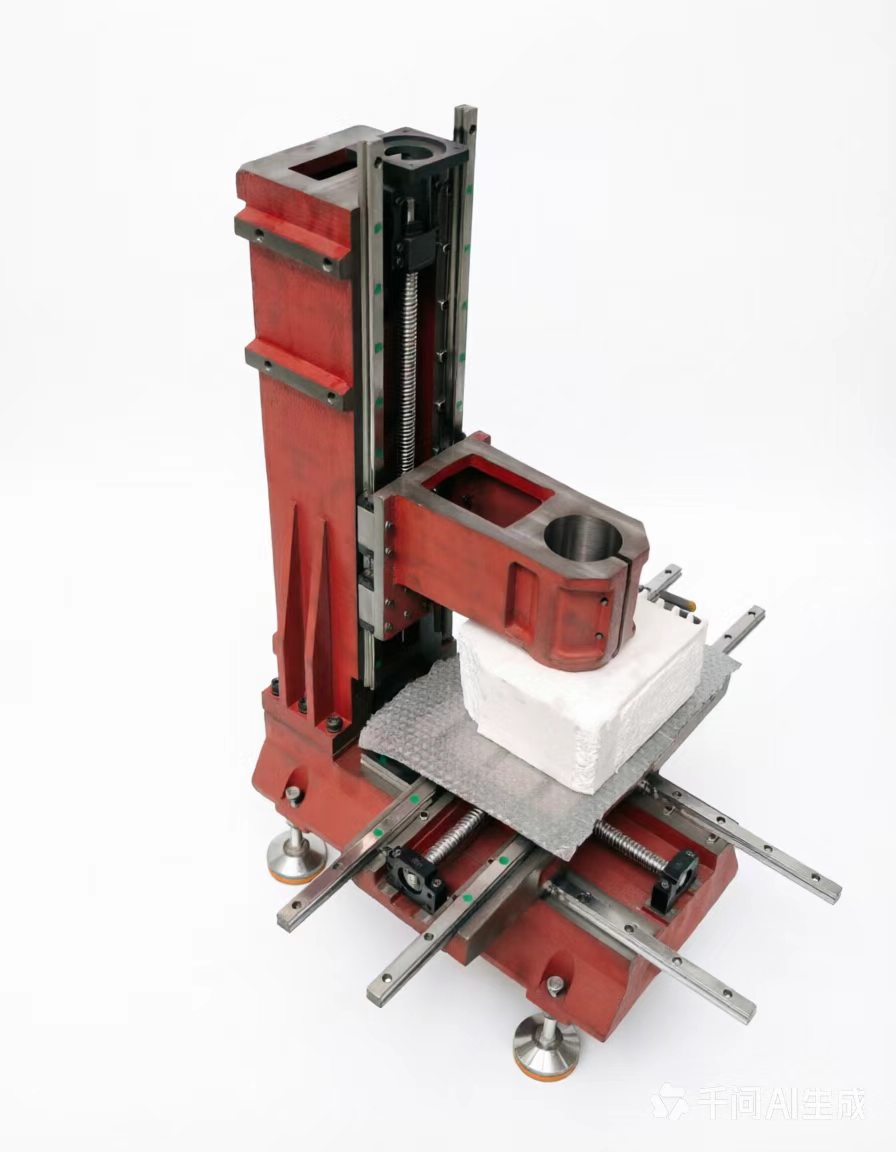

  • 微信图片_20260904150510_284_85.jpg



    • 微信图片_20260904150515_285_85.jpg











    cnc milling machine,cnc frame machine,cnc machine,CNC milling machine frame, CNC bare machine, cast iron cnc frame, VMC3020 machine body, RYA3020 bare frame, vertical cnc mill frame
