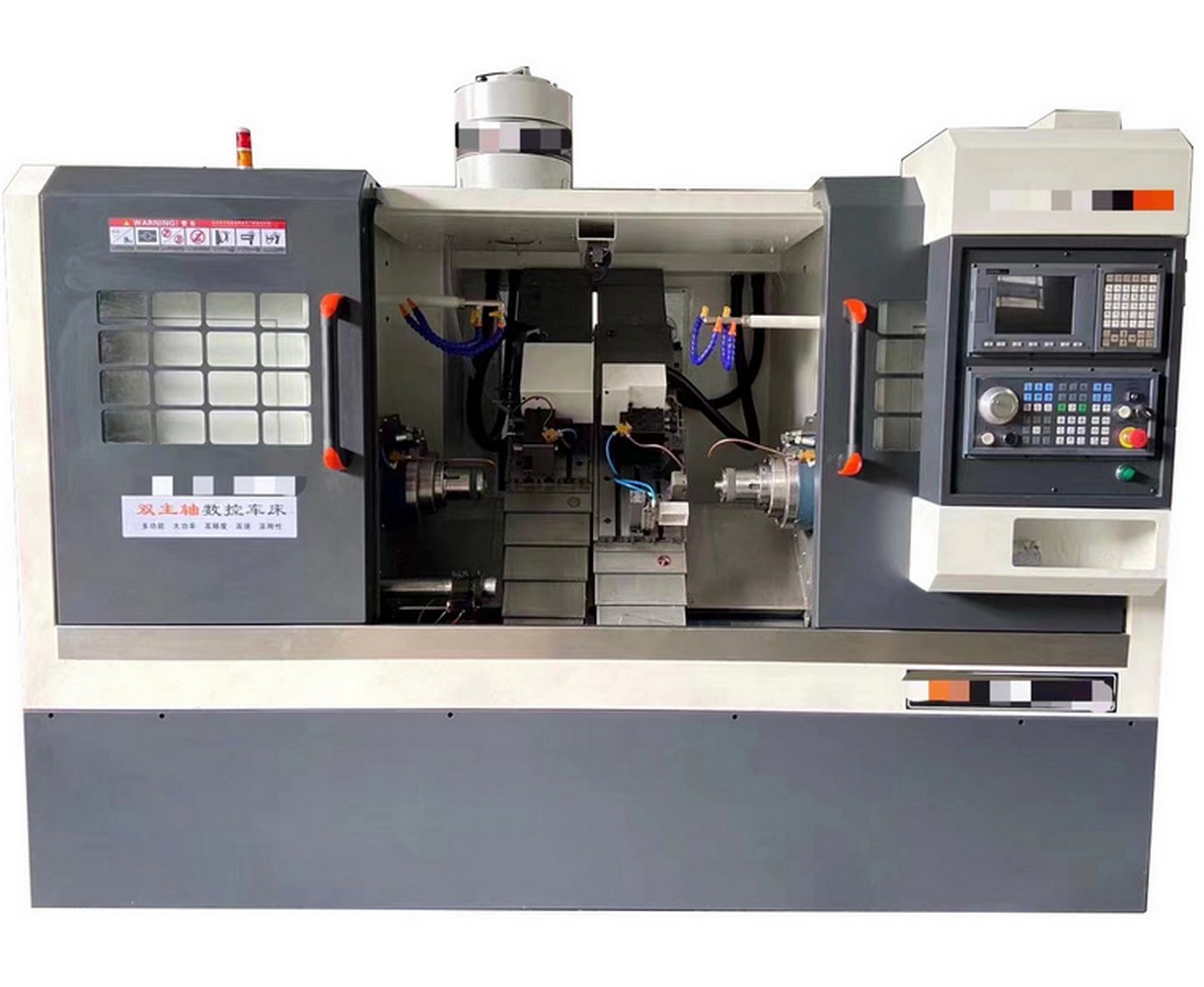

Product Introduction: Full-Automatic Dual-spindles CNC Turning & Milling Lathe

This high-performance dual-spindle CNC lathe is designed for precision metal turning and light milling operations, built with a robust 30° slant bed structure and premium ball guideways for exceptional rigidity and stability. Equipped with a high-torque spindle delivering a maximum speed of 3500 r/min and a 5.5 kW spindle motor, it efficiently handles bar stock up to Φ45 mm and achieves a maximum swing diameter of 380 mm, ideal for mass production of small-to-medium metal components.

The machine features an 8-station gang tool configuration with a 16 mm square tool capacity, supporting both turning and drilling/milling tasks with high efficiency. The X/Z axes, driven by Dongmuchuan servo motors (1.5 kW / 6N), offer a rapid traverse speed of 18 m/min, significantly reducing non-cutting time and boosting productivity.

Controlled by a reliable Yashu Zhike CNC system (optional upgrades available), this fully automatic lathe ensures precise and repeatable machining accuracy for complex metal parts. With a compact footprint of 2120 × 1620 × 1920 mm and a total weight of 2900 kg, it is easy to integrate into any workshop. Standard accessories include collet chucks, tool posts, and ER20A extension rods, while optional upgrades such as automatic bar feeders and hydraulic chucks enable fully automated production lines.

Perfect for automotive, hardware, and general engineering applications, this multi-functional CNC lathe combines versatility, efficiency, and reliability to meet your diverse metalworking needs.
