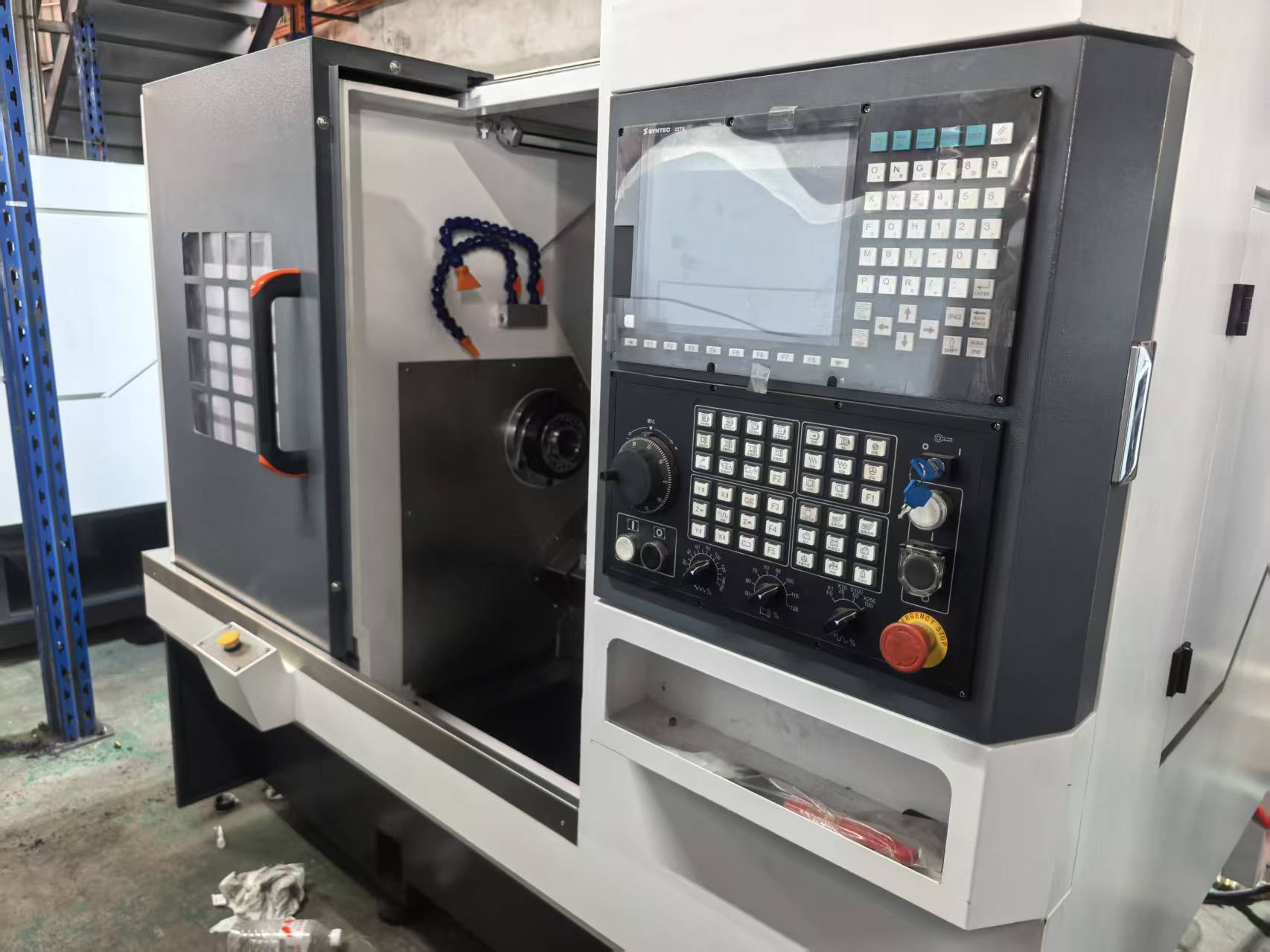

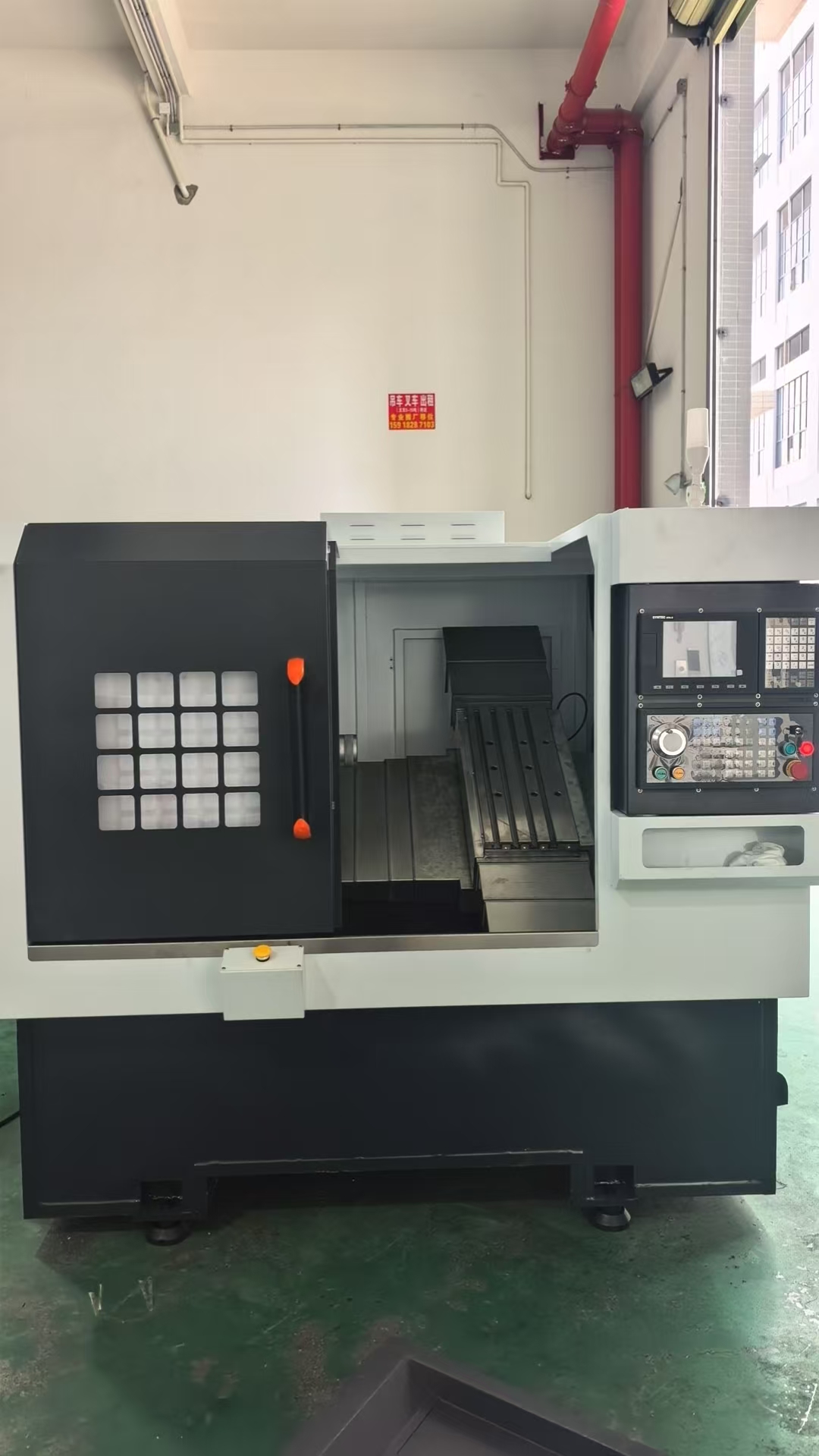

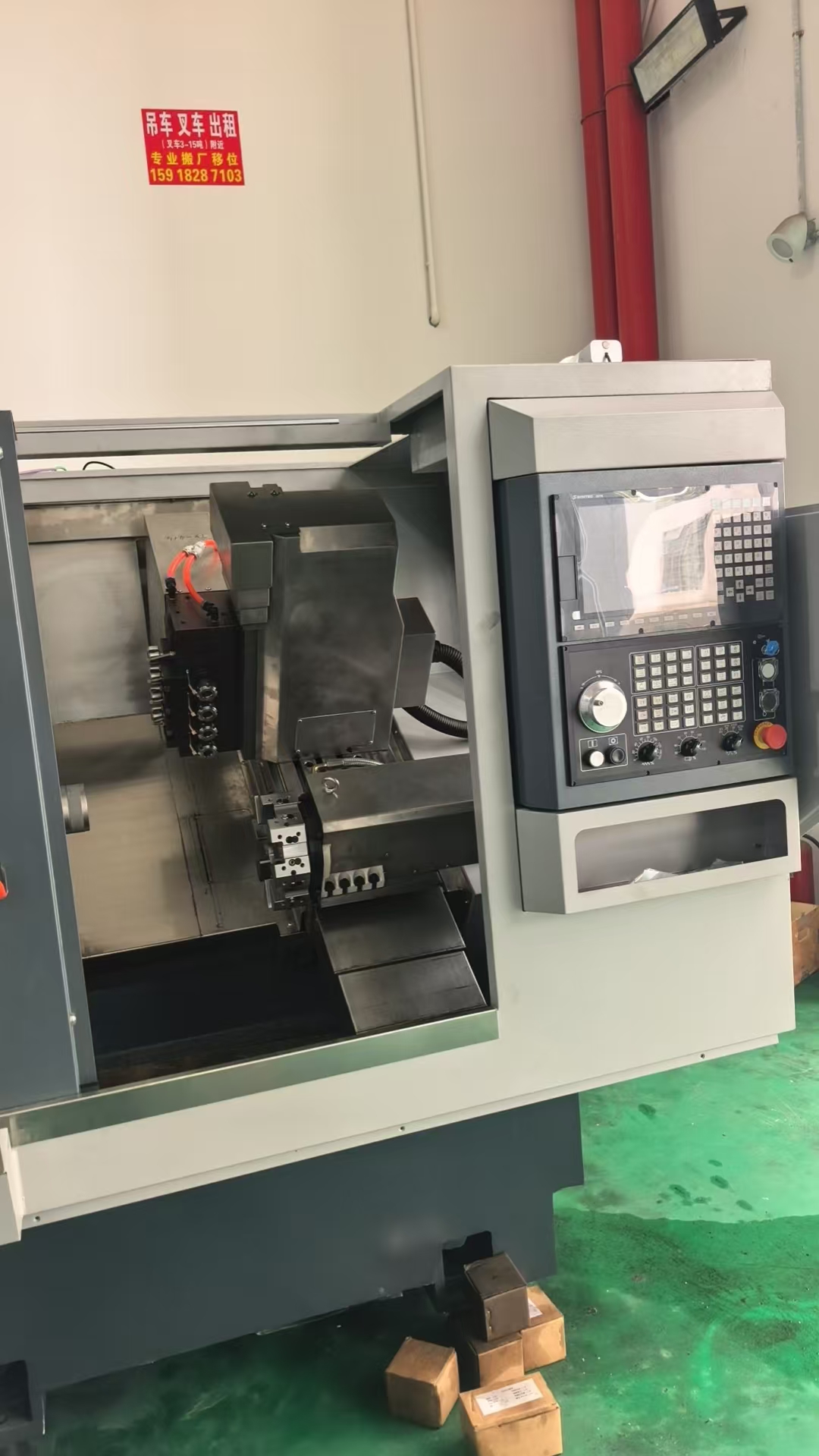

Machine Tool Overview

 Application: Mass part processing, complex operations (external turning, internal boring, threading, tapping, taper turning, circular arc turning, grooving, parting-off).

 Key Features:

1. Heavy-duty anti-deformation patented base for stability.

2. 30° slant bed for easy chip removal; high-precision linear ball guide rails for agility and long-term accuracy.

3. Independently developed CNC system and drive control for high speed and precision.

4. Professional debugging and 3-ton weight ensure maximum rapid traverse speed (25 m/min) without vibration.5. Optional collet (mass processing) or hollow hydraulic chuck (manual loading).

III. Structural and Configuration Features

1. Castings: High-quality resin sand molding, high-strength cast iron with aging treatment.

2. Spindle: Independently developed cartridge spindle unit (sealed, high-speed, grease-lubricated, maintenance-free).

3. Feed System: X/Z-axis servo motors connected to ball screws via elastic couplings; high-rigidity angular contact bearings; pre-stretched screws to reduce thermal deformation.

4. Protection: Fully enclosed cover for operator safety and coolant leakage prevention.

5. Lubrication: Timed centralized oil supply with detection positive displacement distributor and high-pressure pump.

6. Cooling and Chip Removal: High-power water pump; large inclined chip discharge port (manual removal standard, automatic optional).

7. CNC System: Yashu’s newly developed system (combines imported/domestic advantages, precise algorithms, fast response).

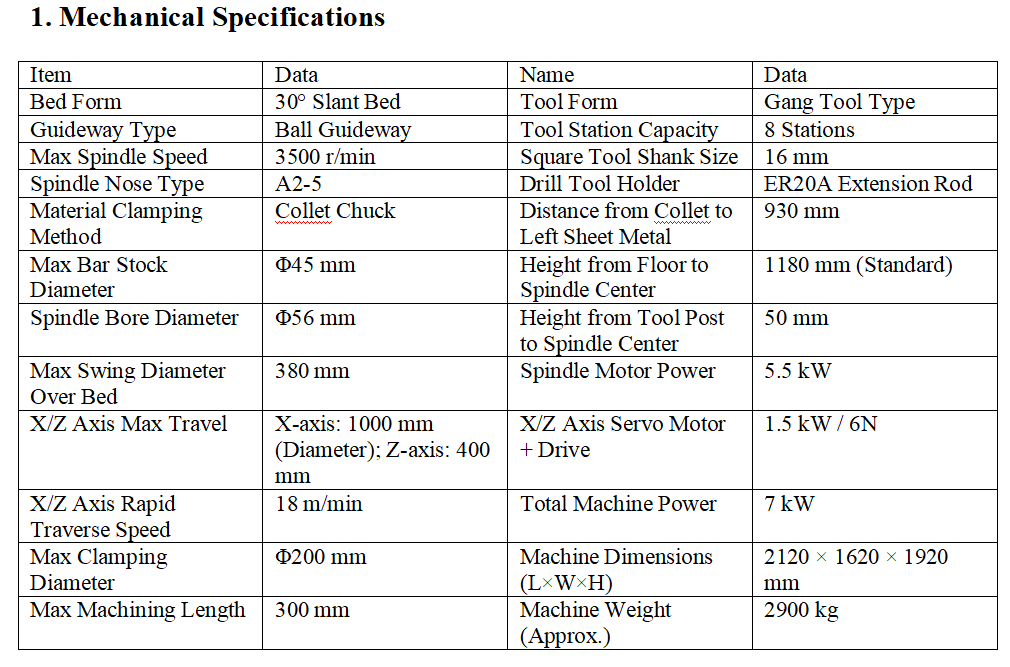

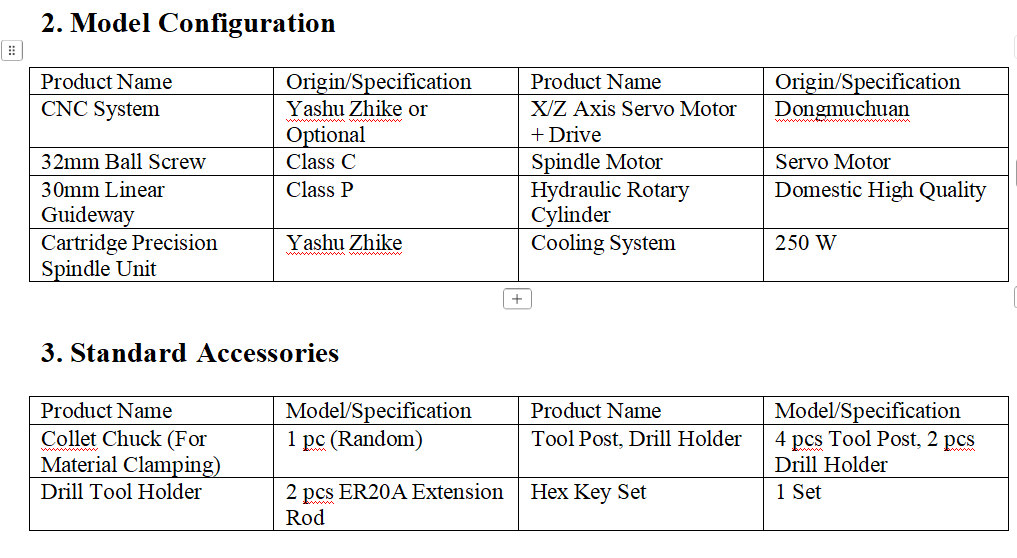

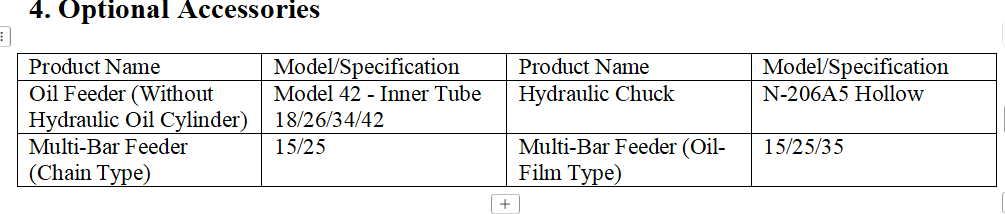

IV. Parameters
