Frame machine Small Cnc lathe Machine Casting Iron Steel Frame Slant Diy Homemade Hot Sale Metal Tool Kits facotry price

Description:

Parameters of the L300 Desktop - style Equipment- **Stroke Parameters**: The XZ - stroke is 300*150mm.- **Transmission Components**: The linear guide rails use X25 rollers and Z20 rollers; the ball -


product details

Parameters of the L300 Desktop - style Equipment

- **Stroke Parameters**: The XZ - stroke is 300*150mm.

- **Transmission Components**: The linear guide rails use X25 rollers and Z20 rollers; the ball - screw is a 2005 ball - screw C5.

- **Motor - related**: The power of the spindle motor is 165 - 4KW, and the spindle speed can reach 4000RPM; the XZ - axis motors are 80 servo motors.

- **Chuck and Through - hole**: The chuck parameter is 125, and the spindle through - hole is 30.

- **Machining Range**: The maximum rotation diameter is 260.

- **Movement Speed**: The rapid movement speeds of X and Z are both 15m/min.

- **Accuracy Parameters**: The repeat positioning accuracy is ≤0.005, and the positioning accuracy is ±0.01.

- **Size and Weight**: The floor space is 1000*660*800mm, and the weight of the machine tool is 400kg.

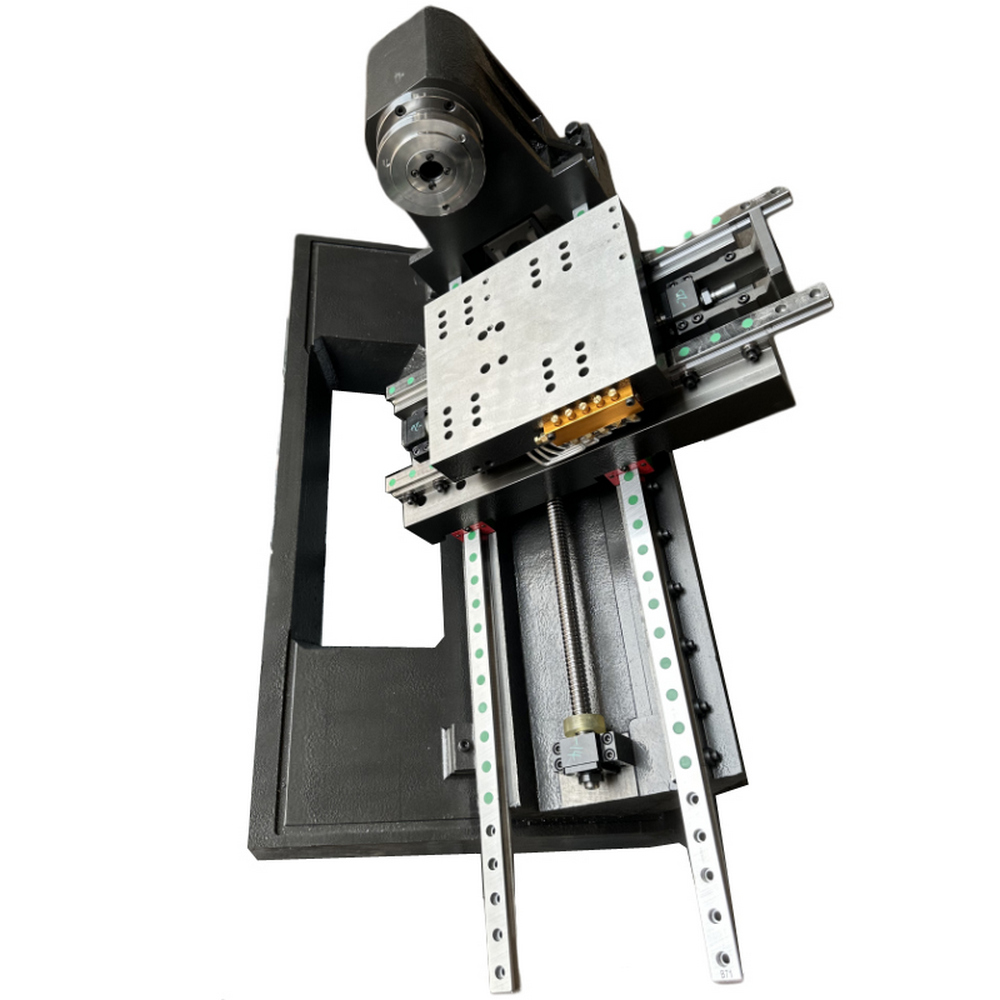

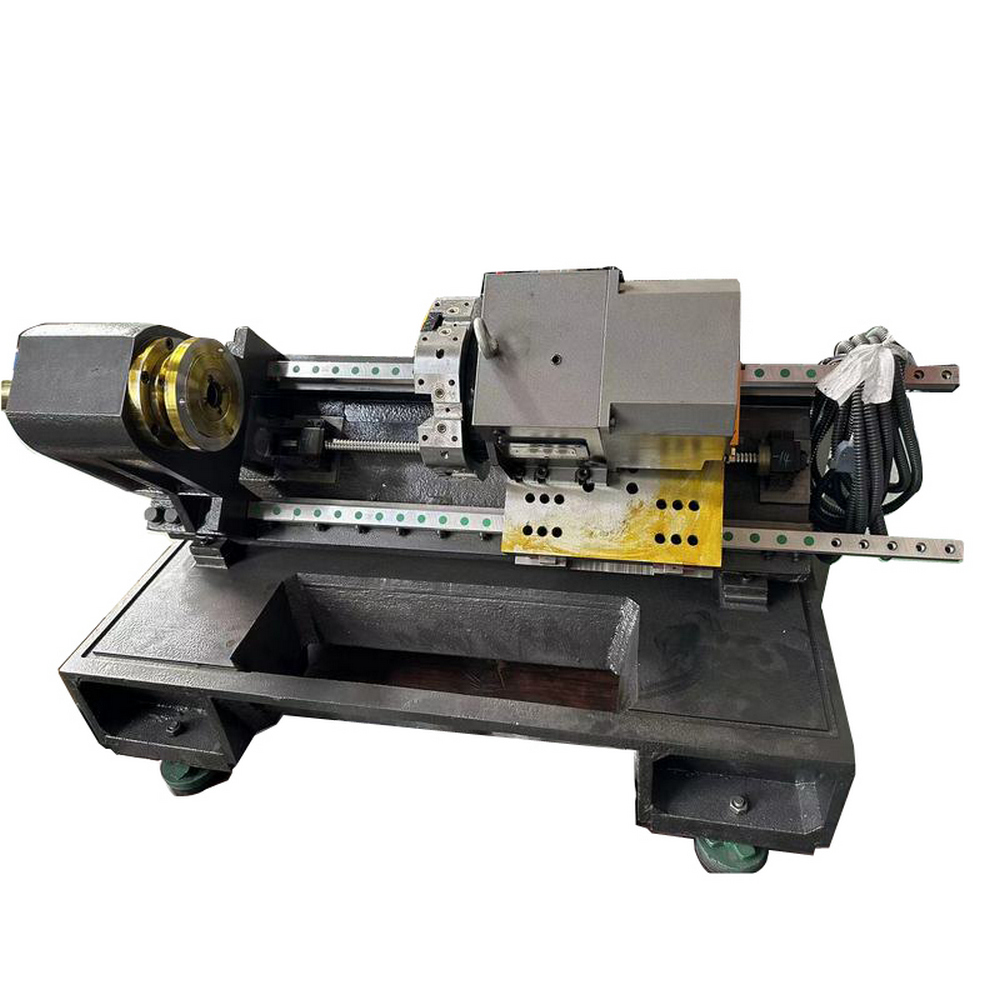

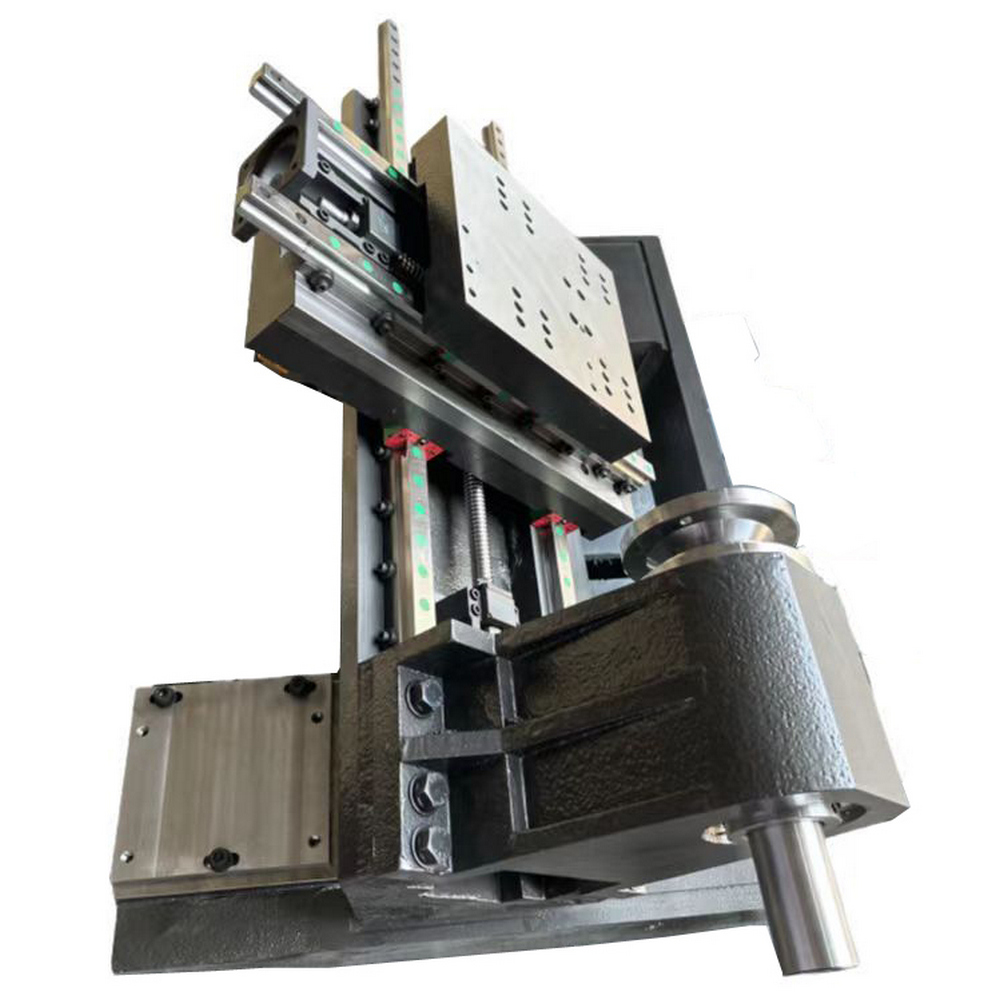

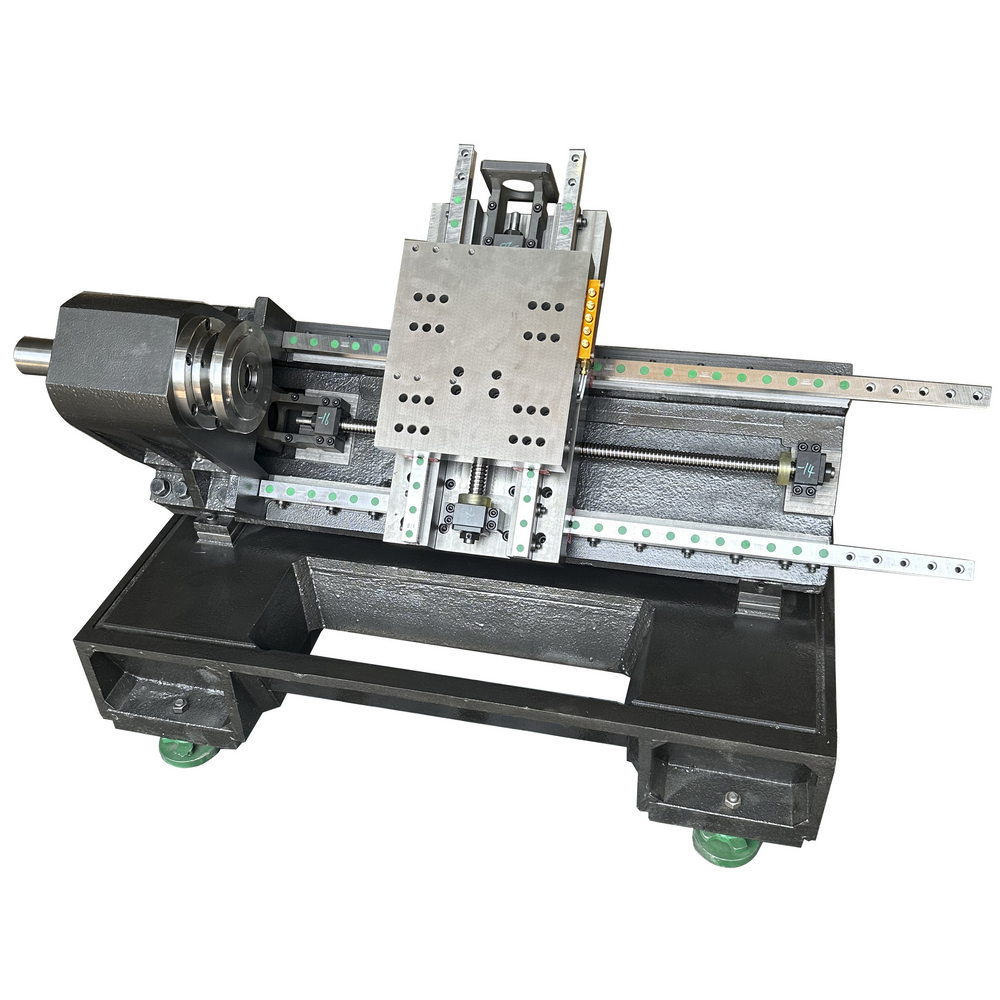

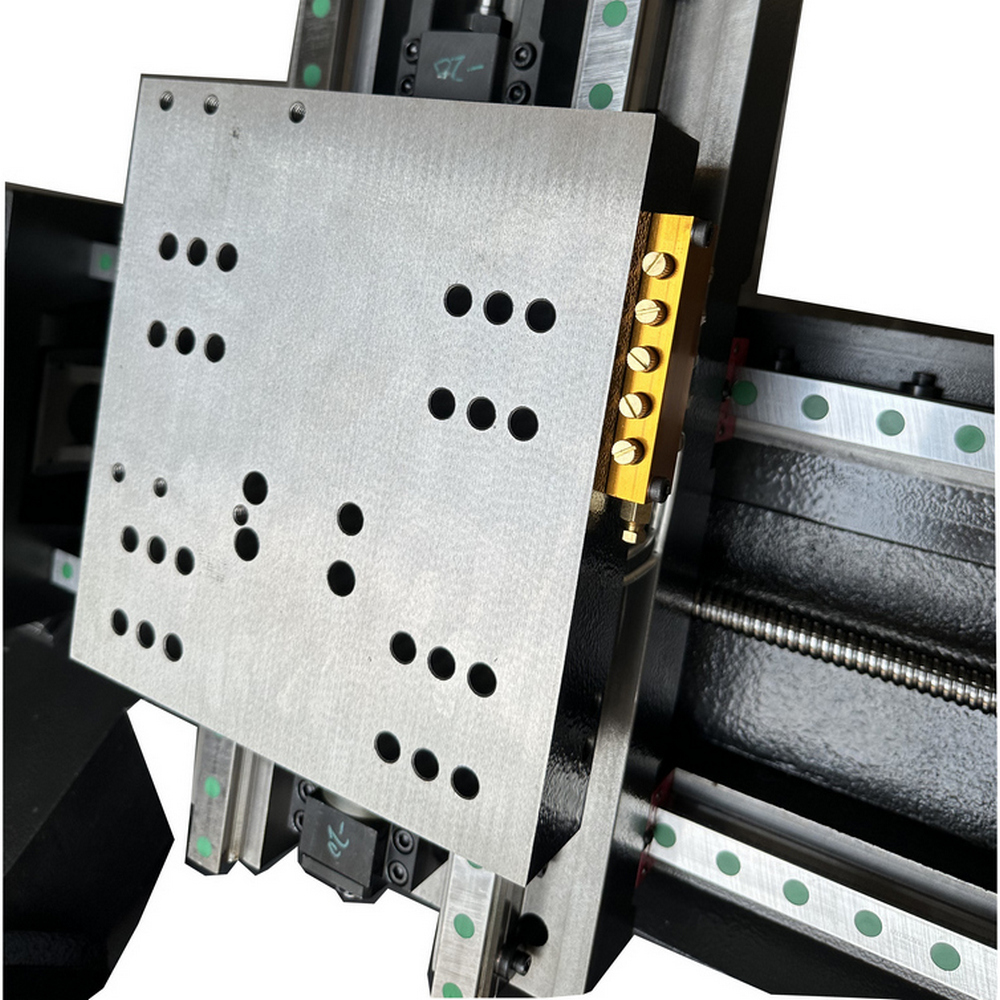

ls300mainmain1-frame slant lathe machineside1-frame slant lathe machineside2-frame slant lathe machinedetail-frame slant lathe machine

frame machine,cnc lathe machine,casting iron machine,cnc machine ,lathe machine,cnc machine made in china
