Casting iron Frame VMC 425 Cnc Milling Machine Aluminum Steel 100mm Bt30 Spindle Mill 400*250*350mm drilling tapping industrial

Description:

VMC 425 Cnc Milling Machine Aluminum Steel 100mm Bt30 Spindle Mill 400*250*350mm Casting iron Frame drilling tapping industrial1. Designed Stroke: X400mm, Y250mm, Z350mm2. Rails: The X-axis adopts 25


product details

VMC 425 Cnc Milling Machine Aluminum Steel 100mm Bt30 Spindle Mill 400*250*350mm Casting iron Frame drilling tapping industrial

1. Designed Stroke: X400mm, Y250mm, Z350mm

2. Rails: The X-axis adopts 25 linear rails, and the Y and Z axes adopt 30 linear rails.

3. Ball Screw: 2505 ball screw

4. Drive Shaft Motor: 80 servo motor

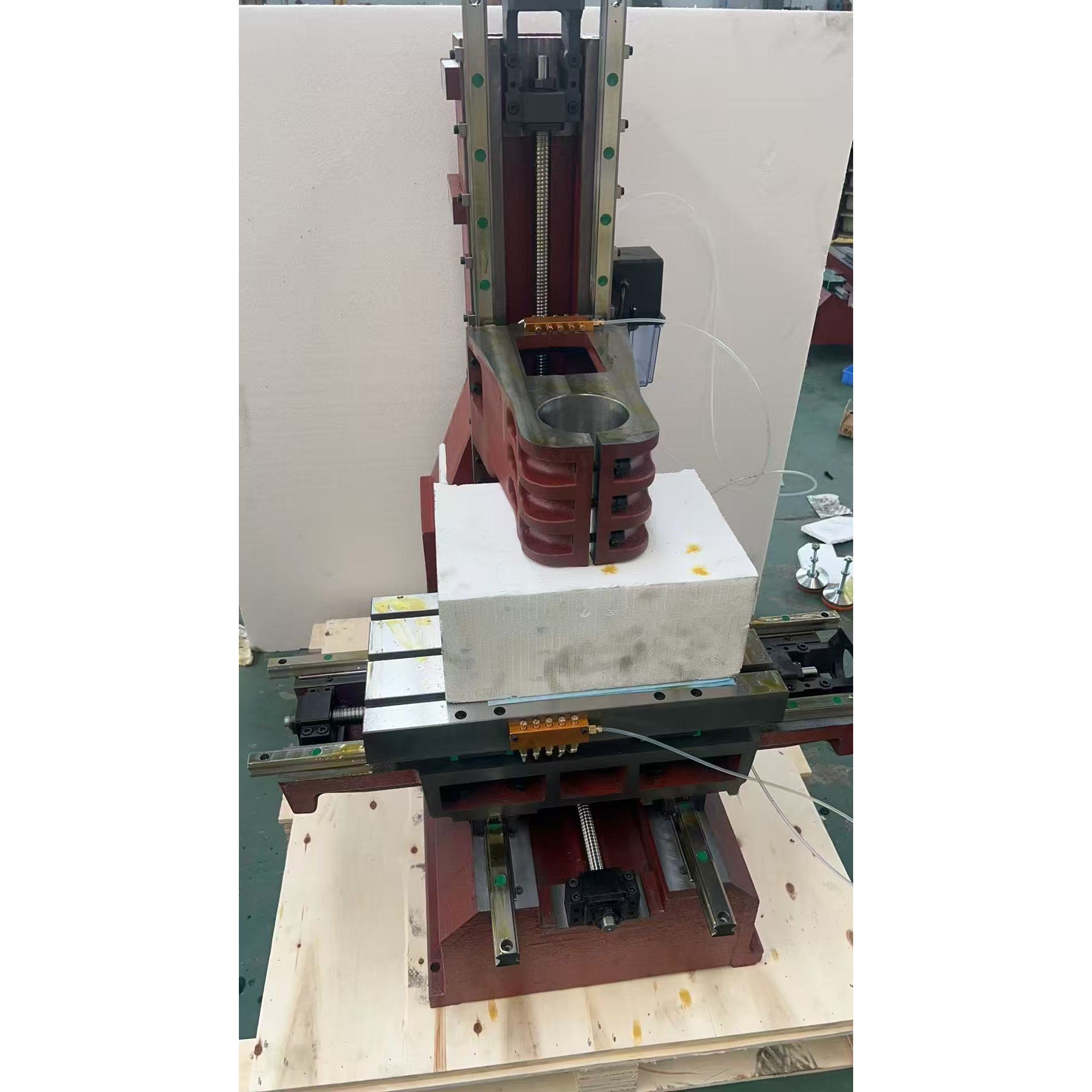

5. Bare Machine: The bare machine is a machine that is processed from castings and assembled with linear rails, ball screws, and motor mounts. It includes the oil circuit but does not include the spindle, motor, controller/system, protection, etc. The spindle mount is a standard 100 aperture integrated holding mount (the integrated mount has higher rigidity compared to the split mount), and the workbench is a standard through slot plate platform (see the comparison of the two versions of the platform in the right picture).

6. Weight: The bare machine weighs approximately over 400 kilograms.

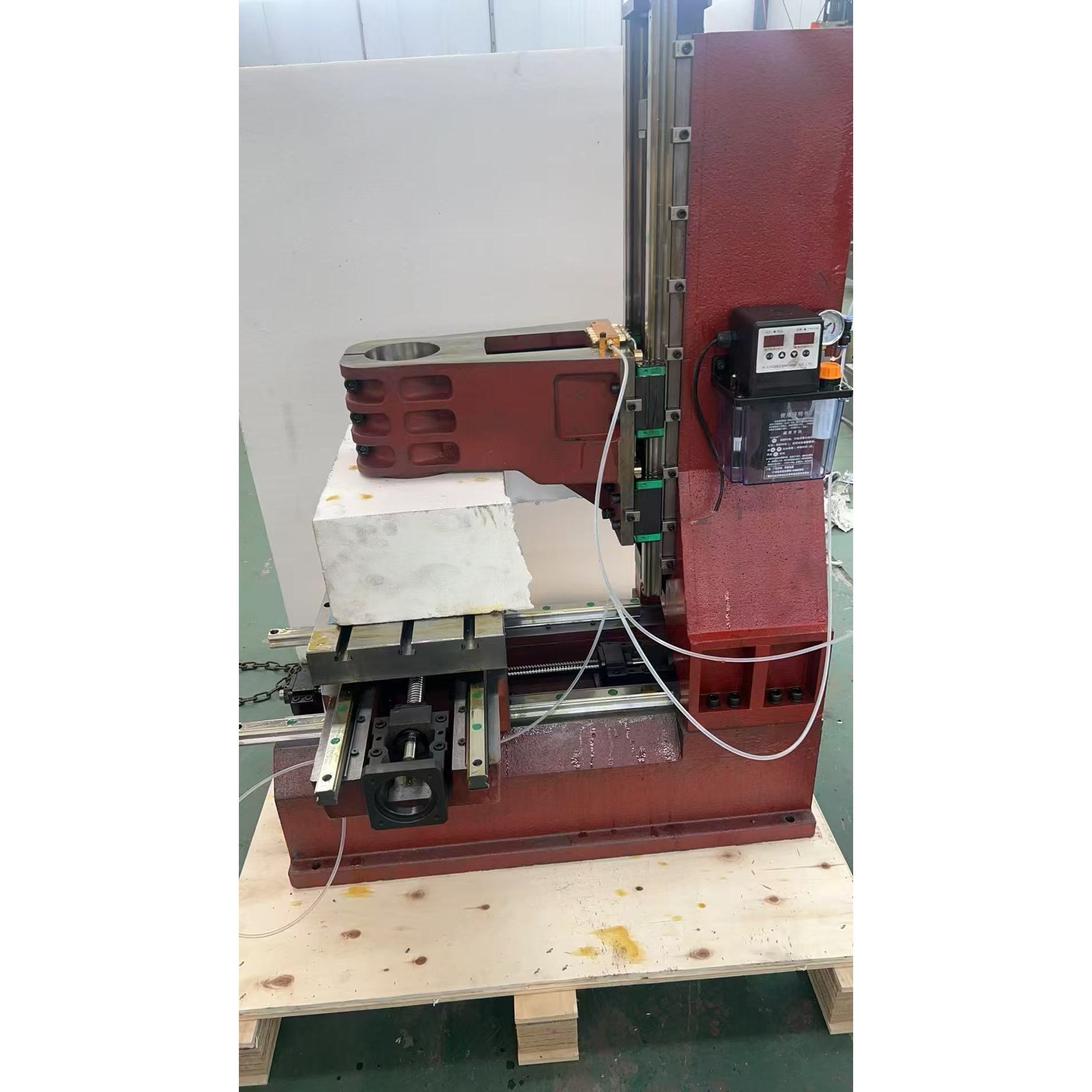

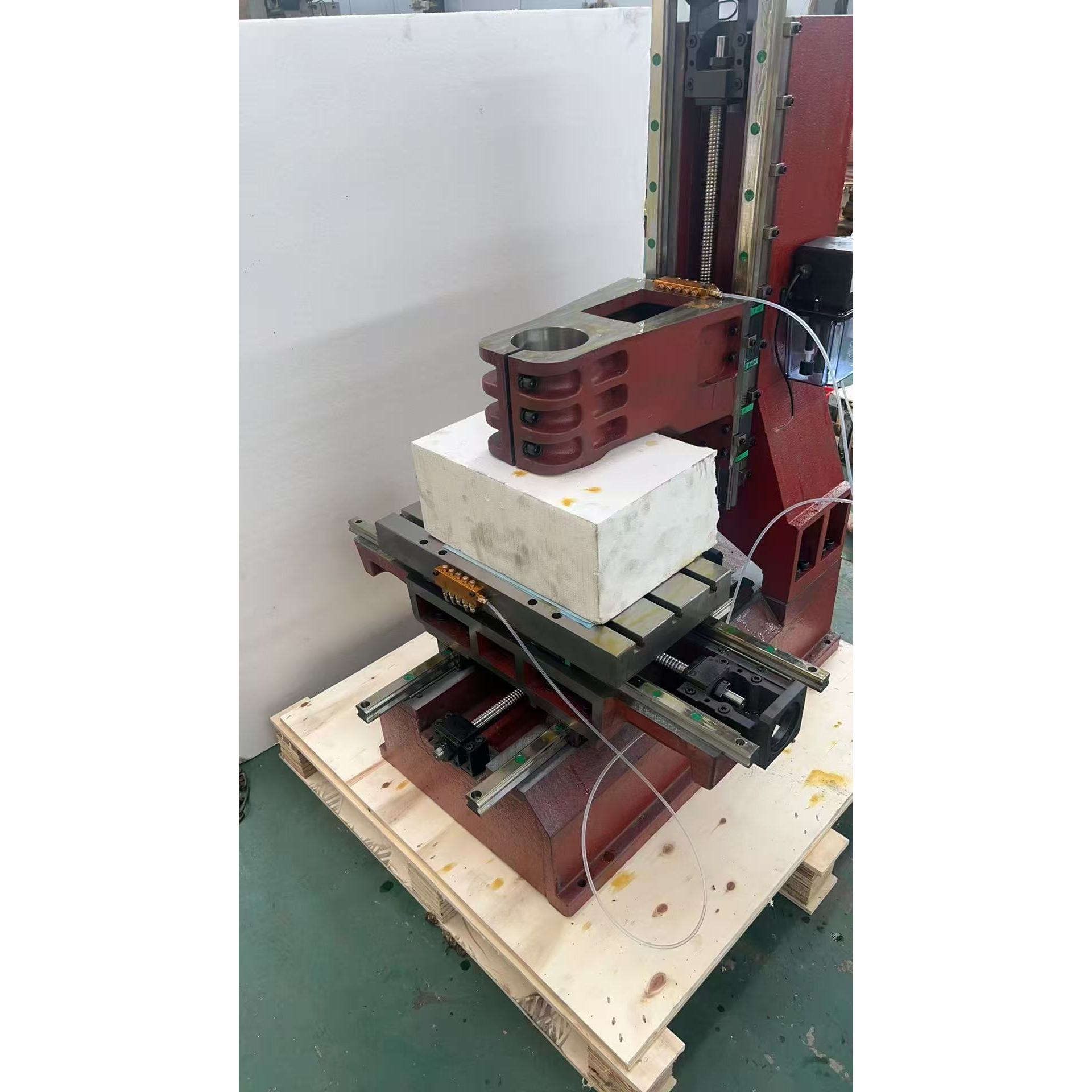

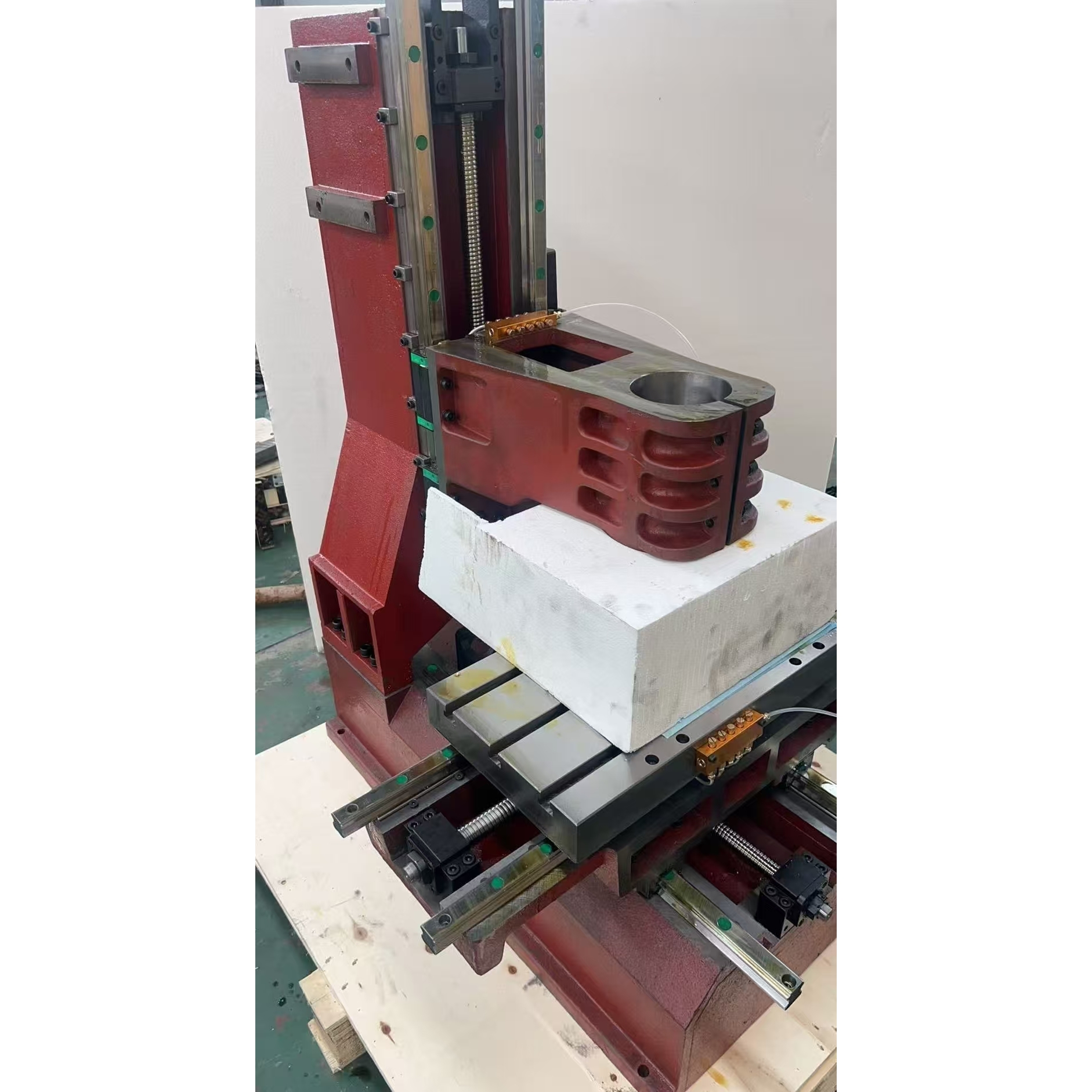

vmc425 frame machine 2vmc425 frame machine 3vmc425 frame machine 4

Casting iron Frame ,cnc milling machine,cnc mill,cnc machine,3 axis cnc machine
