2015 gantry Cnc Engraving Milling Machine desktop Mini Mill Factory Manufacturer price wood routers 3 Axis er11 spindle motor

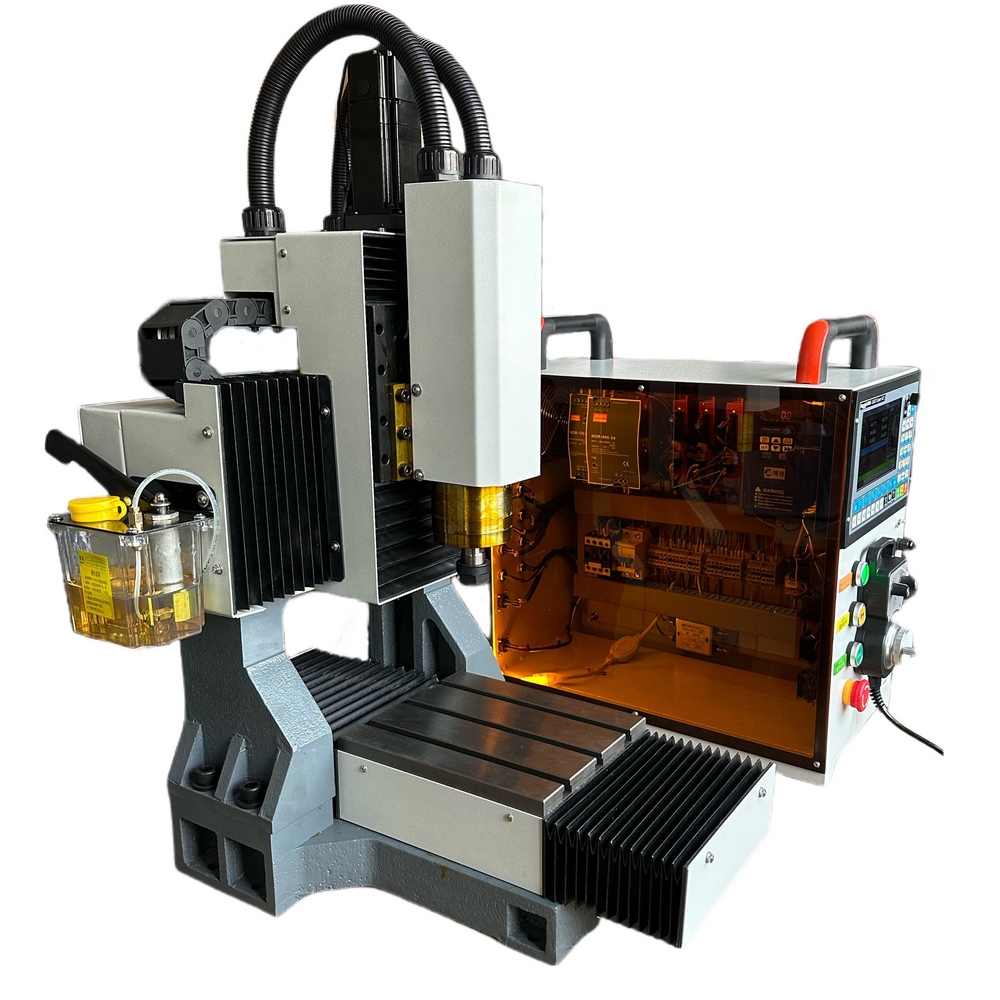

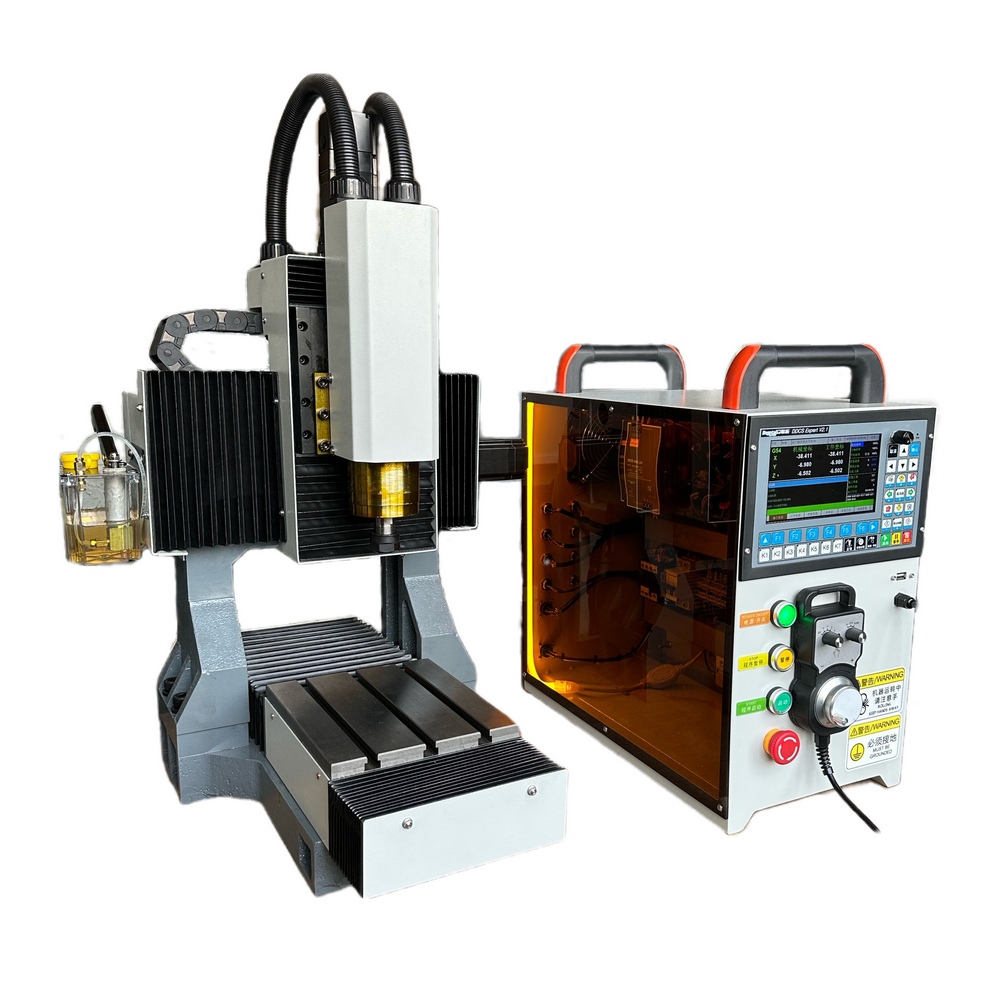

2015 Gantry Engraving Machine
Optical Machine Parameters
1. **Stroke**: The X/Y/Z strokes are 200-150-100MM respectively.
2. **Guide Rails**: The X/Y/Z guide rails adopt HIWIN HG20 ball guide rails, which are original from Taiwan.
3. **Ball Screws**: TBI 1605 C7, also original from Taiwan.
4. **Dimensions of the Optical Machine**: 620-750-850MM.
5. **Worktable Size**: 490-180MM.
6. **Bearings**: HRB angular contact paired bearings/HRB.
7. **Processing**: Precision grinding machine processing in the machining center/manual scraping and installation surface. The bed material is HT250 gray cast iron, with two times of tempering and aging treatment. The protection is three-axis organ cover protection. The origin switch is three-axis contact switch. The oil circuit is lubricated in place by slide block/screw oil pipes, using a manual oil pump.
8. **Precision**: The XY perpendicularity, YZ perpendicularity, and XZ perpendicularity are all better than ±0.01MM/200MM. The parallelism of the table surface is better than ±0.03MM within the stroke. The repeated positioning precision is 0.01MM.
9. **Control System**: DDCS V3.1 offline control system.
10. **Motors**: The Z-axis motor is a 57 stepping motor with 2.0NM, and the XY-axis motors are also 57 stepping motors with 2.0NM.
#### Electrical Accessories
1. **Spindle**: 800W, 24000 rpm, 65 diameter, er11 precision electric spindle, with an optional 62 diameter mold.
2. **Spindle Frequency Converter**: 1000w frequency converter.
3. **Power Transformer**: 600w 48v power supply.

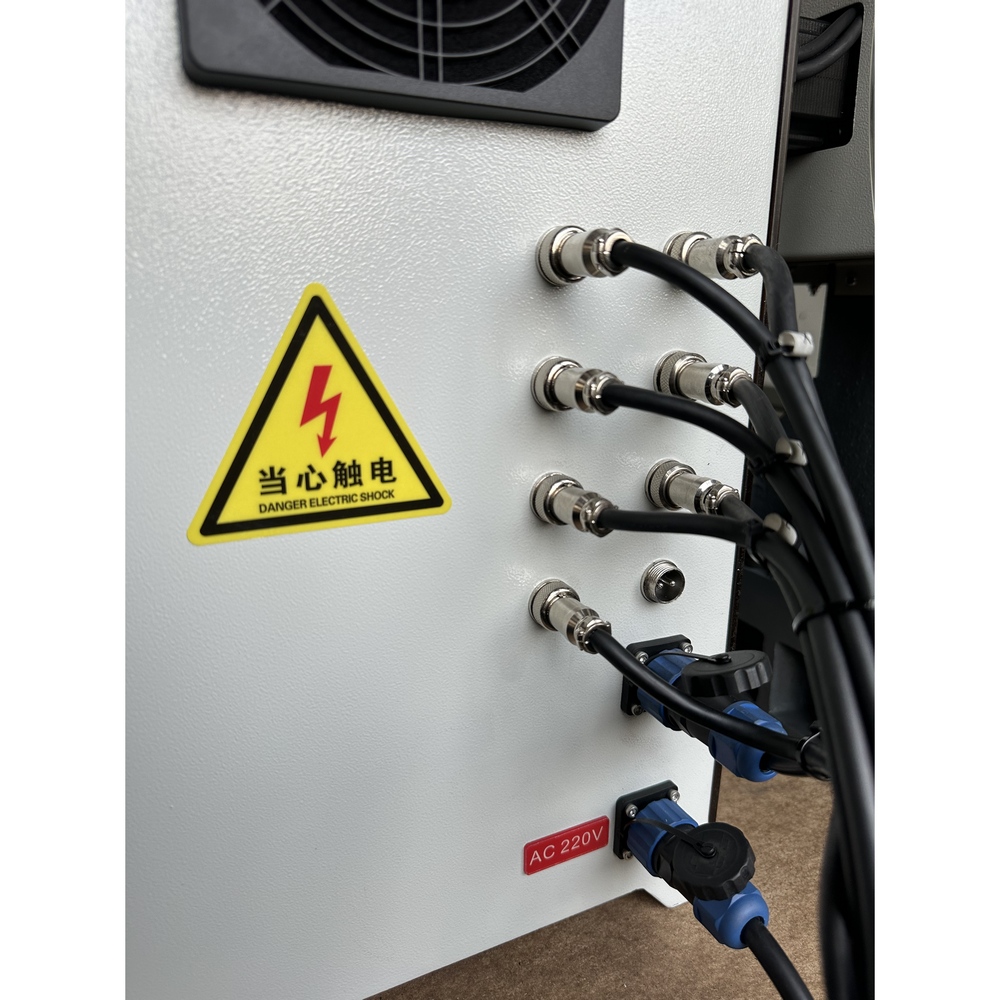

4. **Aviation Plugs**: Power supply, motors x3, spindle x1, input x1, water pumps x2.
5. **Isolator**: Filter 20A.
6. **Other Accessories**: Including cables, relays, air switches, terminal blocks, buttons, etc.
#### Cooling
1. **Cutting Cooling**: Water pump, water pipes, nozzles, regulating valves, optional.
2. **Spindle Cooling**: Water pump, water pipes.
#### Sheet Metal

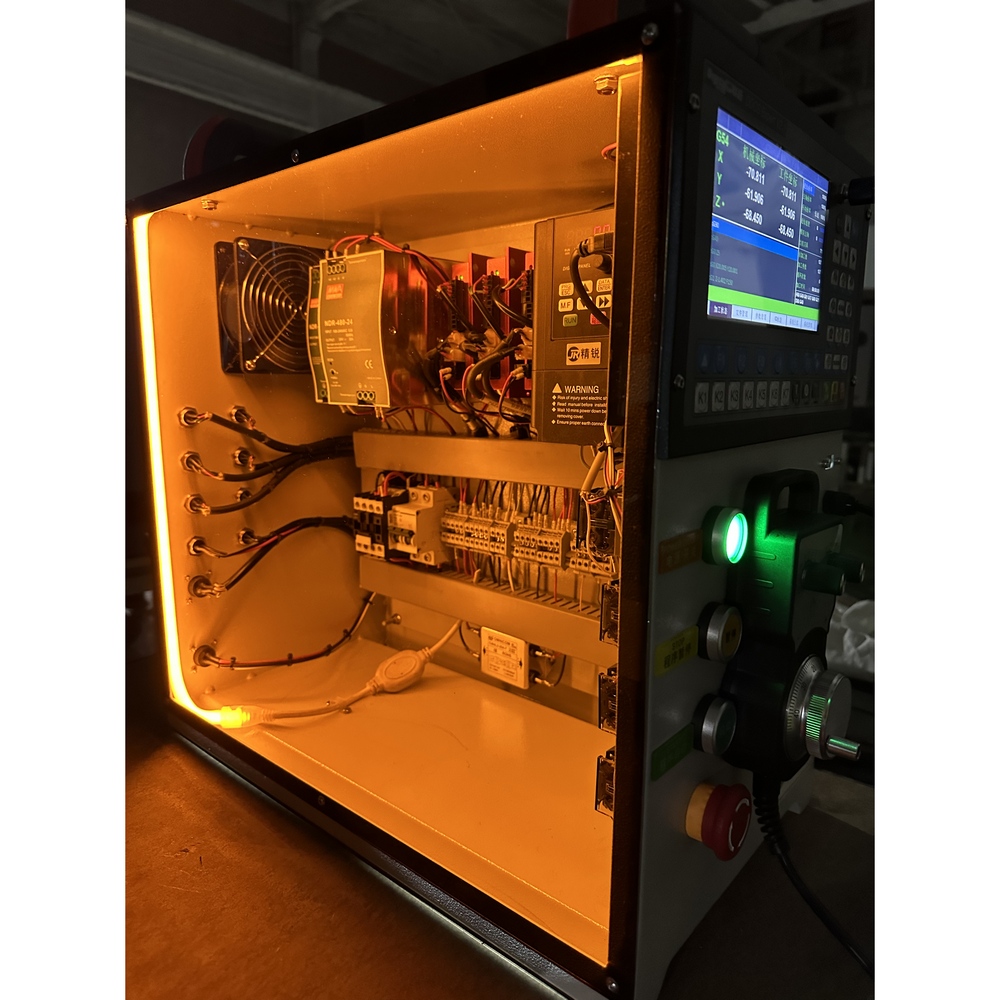

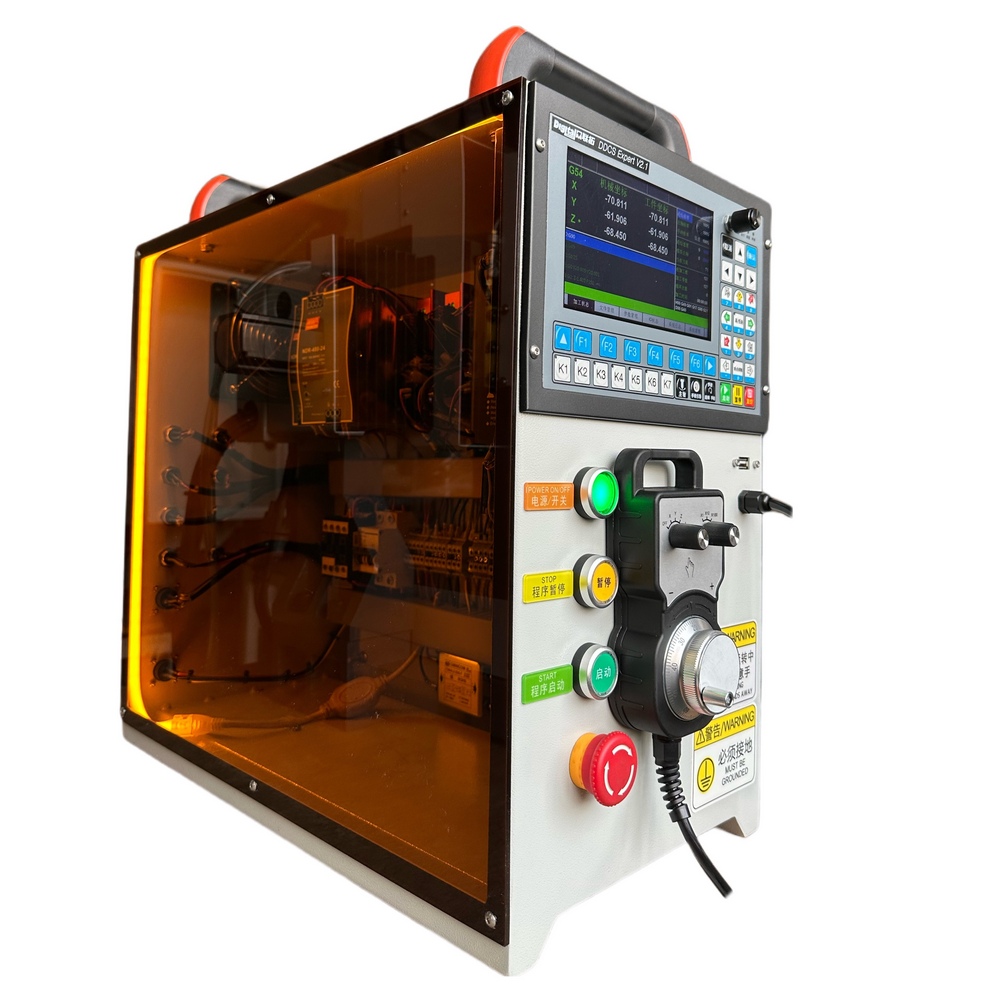

The electrical control box is a small desktop electrical control box.
#### The Whole Machine
1. **Supported Software**: MasterCAM, UG, CAXA and other G-code programming software.
2. **Processing Materials**: Steel parts, copper, aluminum alloy, PVC plastic, organic glass, etc.
3. **Whole Machine Weight**: 150KG.
4. **Applicable Industries**: Parts processing in hardware processing factories, scientific research and development in enterprises or universities, CNC technical training and teaching in vocational colleges, personal DIY, etc.
