Driver and Motor :XYZ aixs 400W servo Absolute value

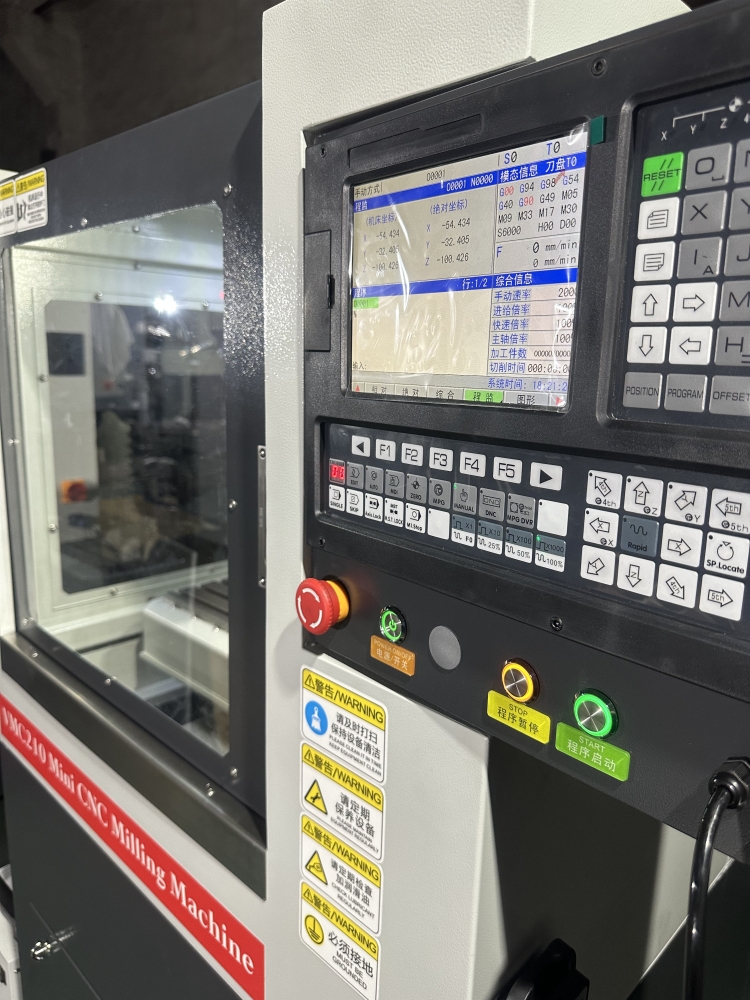

Panel system: 980MC3 axis cnc control system

Handwheel: 3axis 3shift cnc handwheel

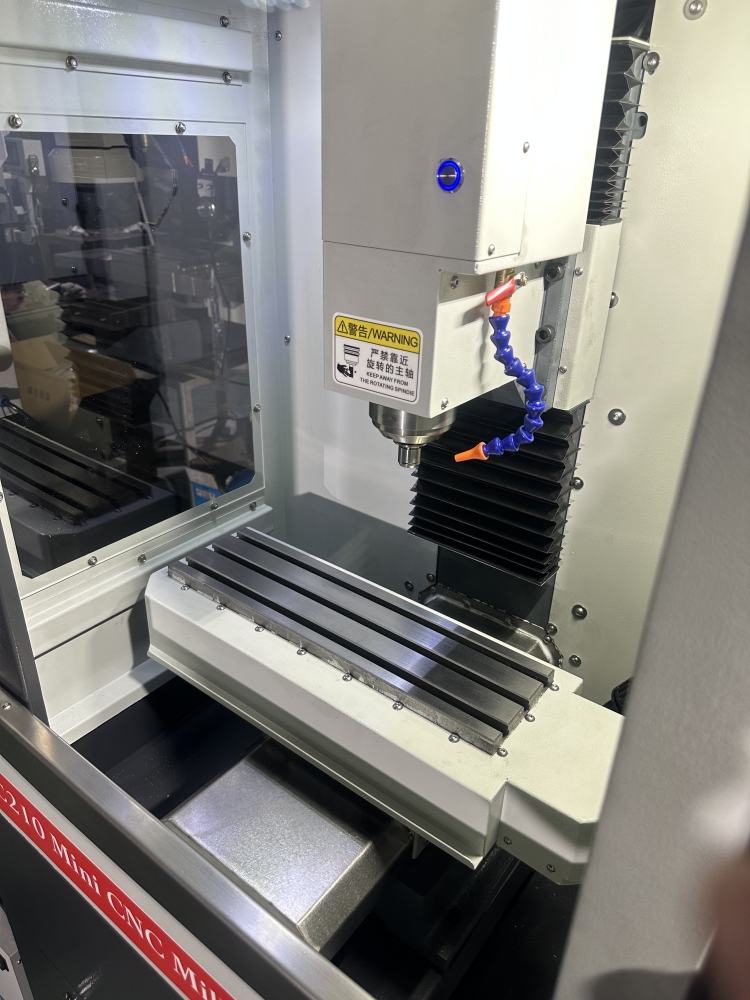

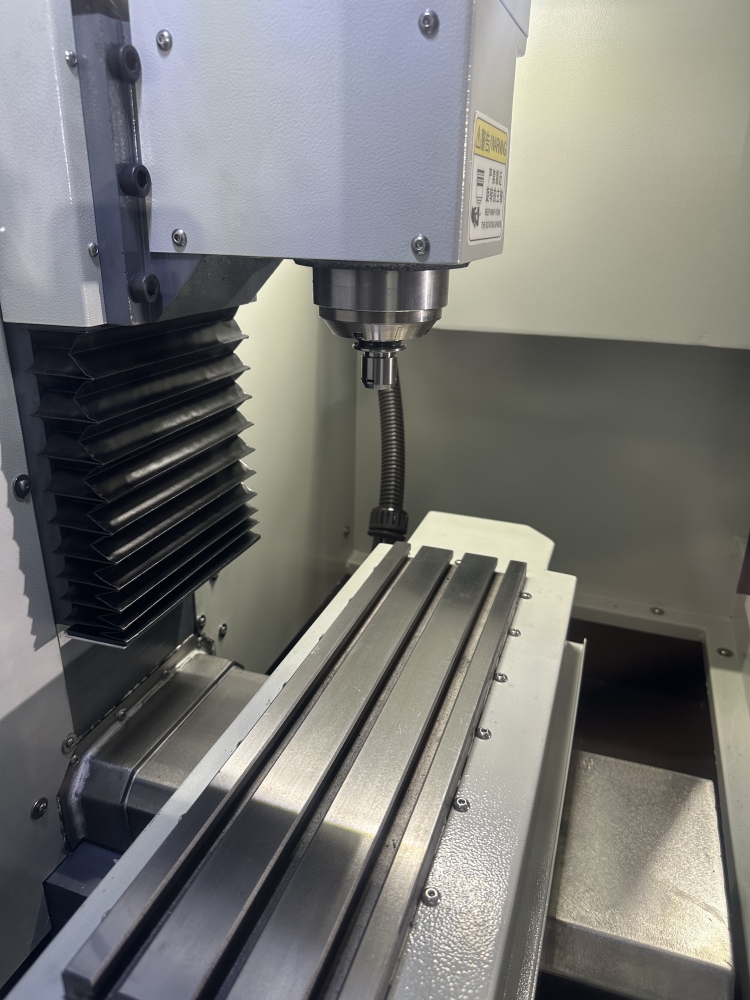

Spindle set

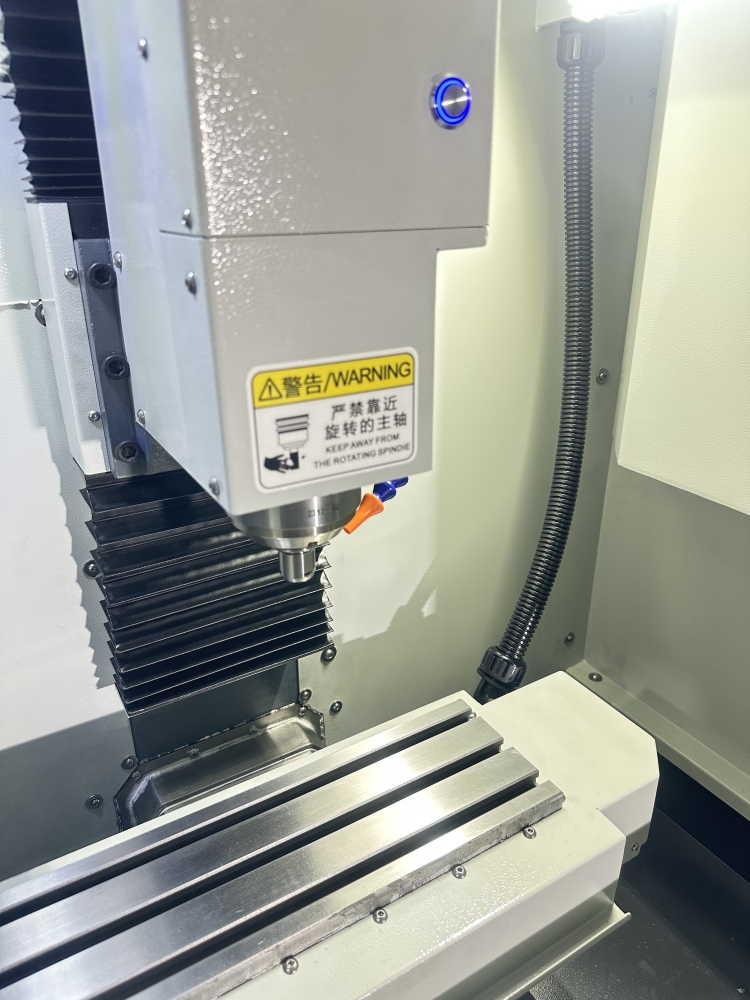

Spindle motor: er16 2.2KW 24000rpm ATC

VFD 2.2KW vector VFD

Machine assesorries

tools magazine 10tools

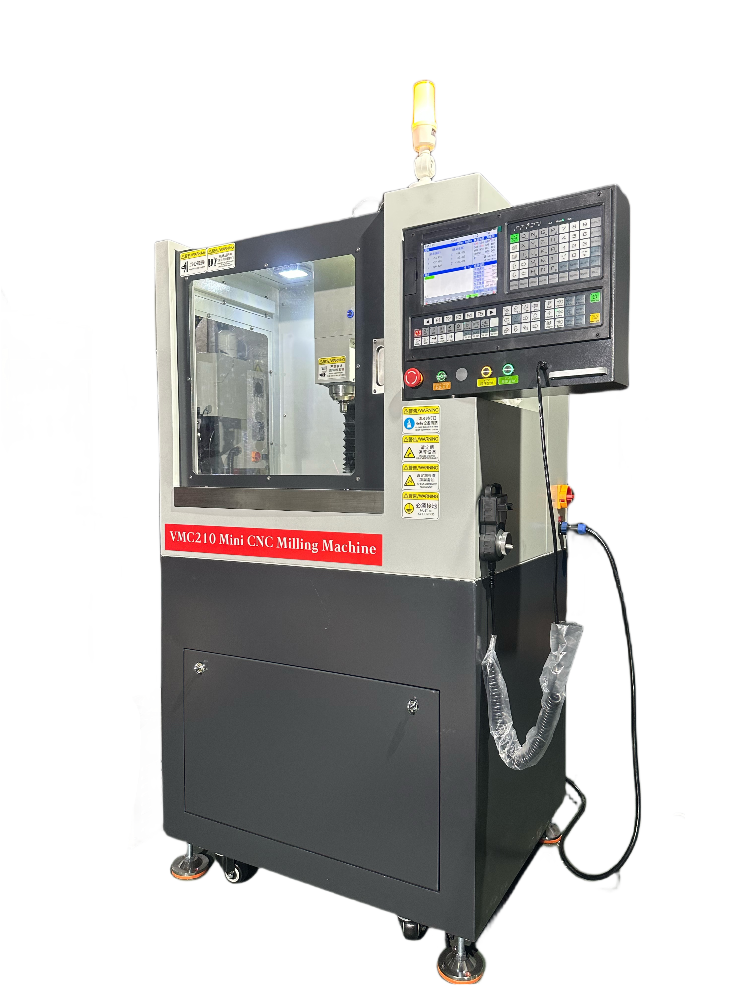

Outline size 900*760*1150mm

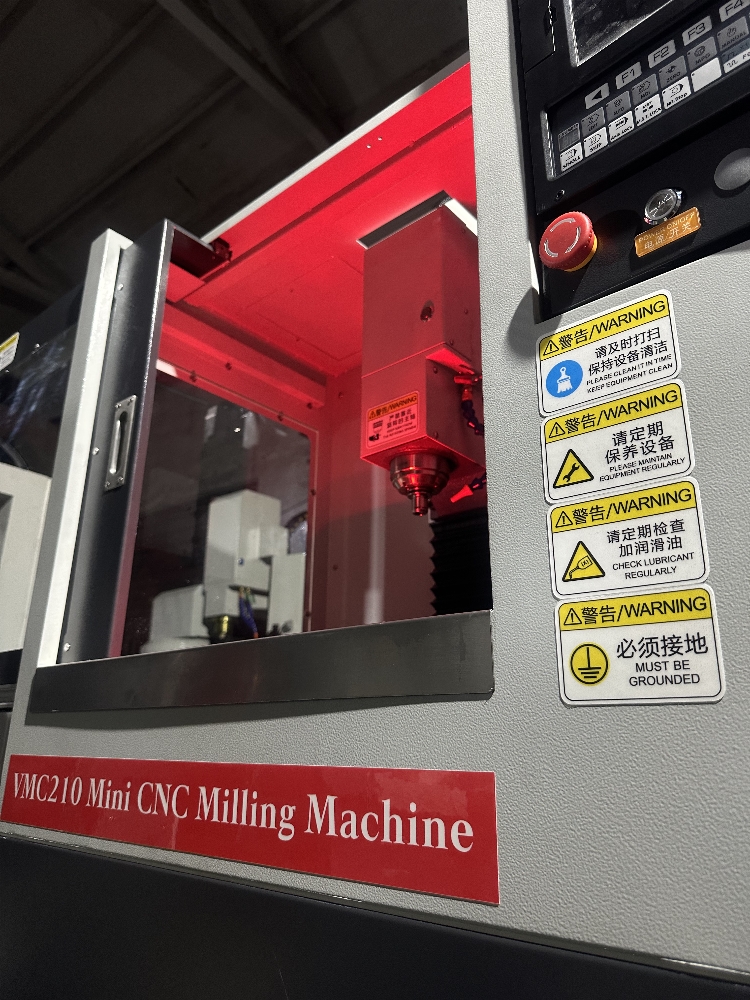

Lamp included

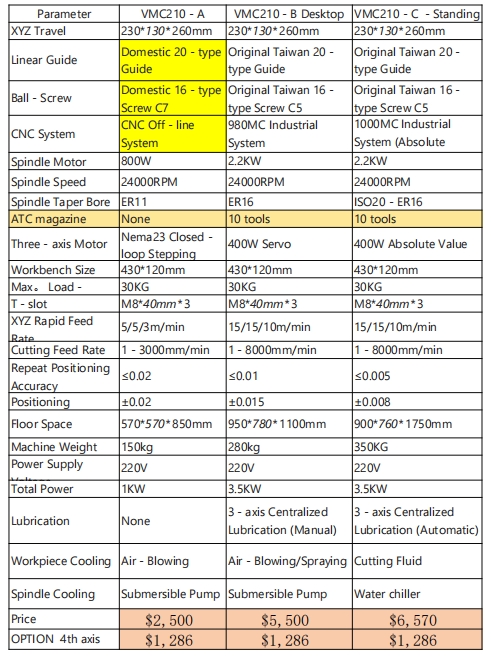

Frame machine parameters

Stroke X230 Y130 Z260

Linear railway PMI XYZ 20mm

Ballscrew DTK C5 XYZ 1605

Net weight 310KG

T slot M8*3

XYZ Linearity 0.01 / 200MM

XYZ Verticality 0.01 / 200MM

Worktable Flatness 0.01 / 200MM

Worktable Size 430*120MM

XYZ Rapid movement 20000MM/MIN

Linear axis repeat positioning accuracy ≤0.01MM
