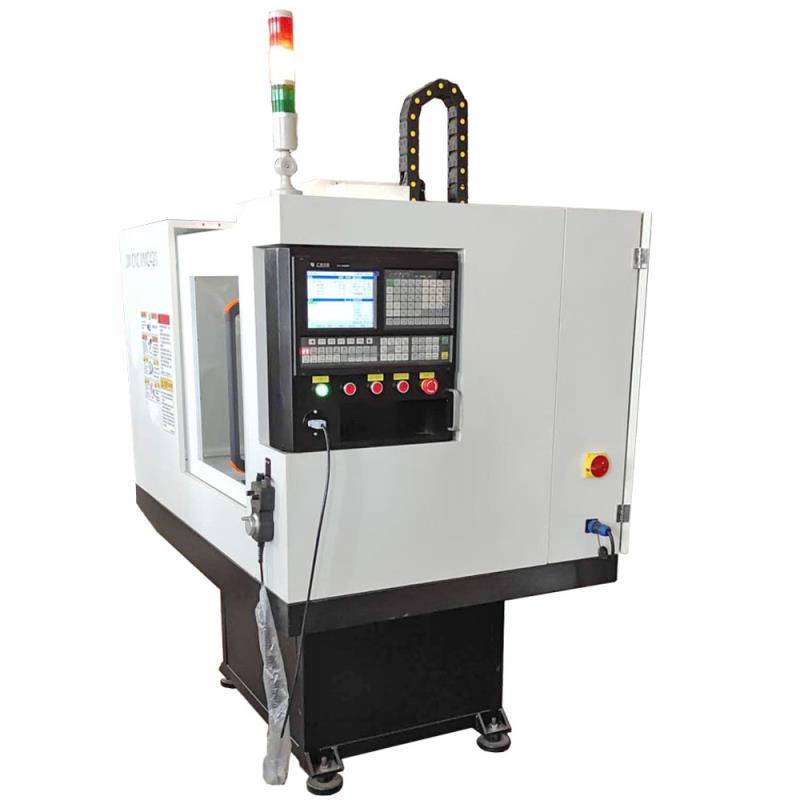

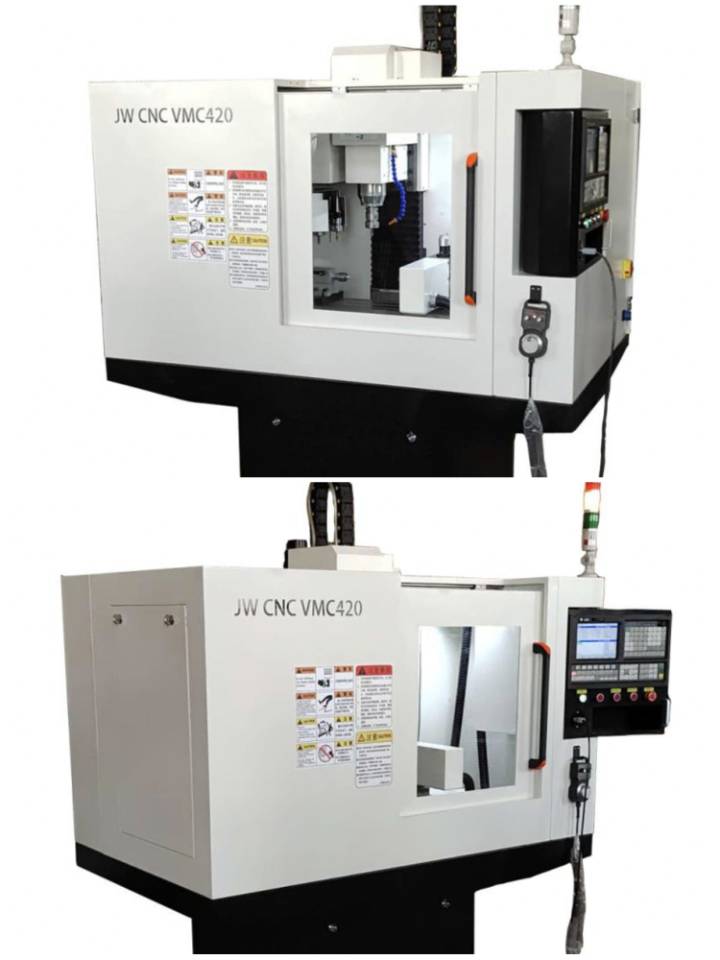

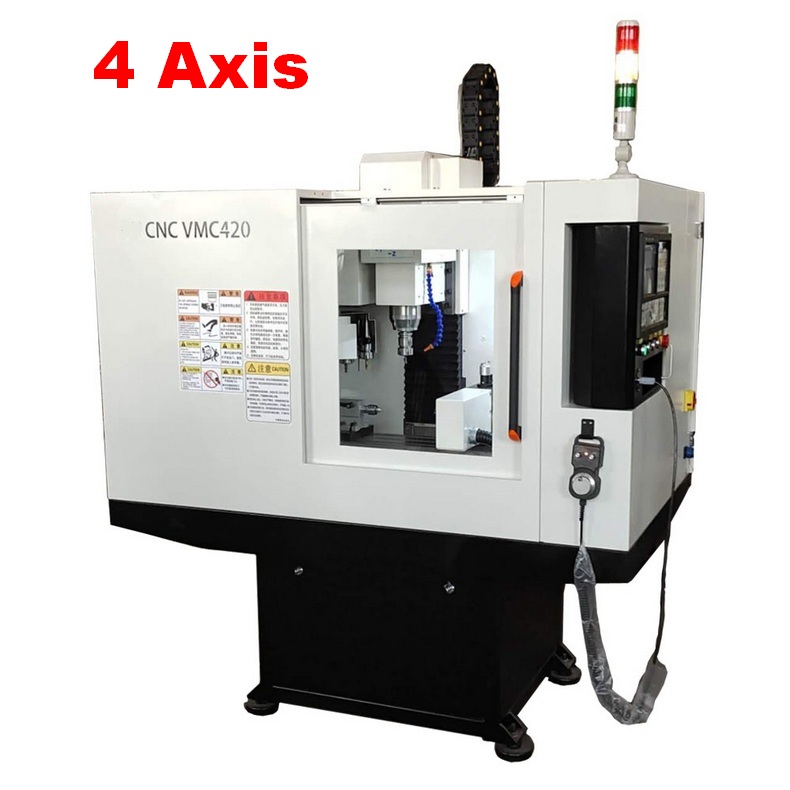

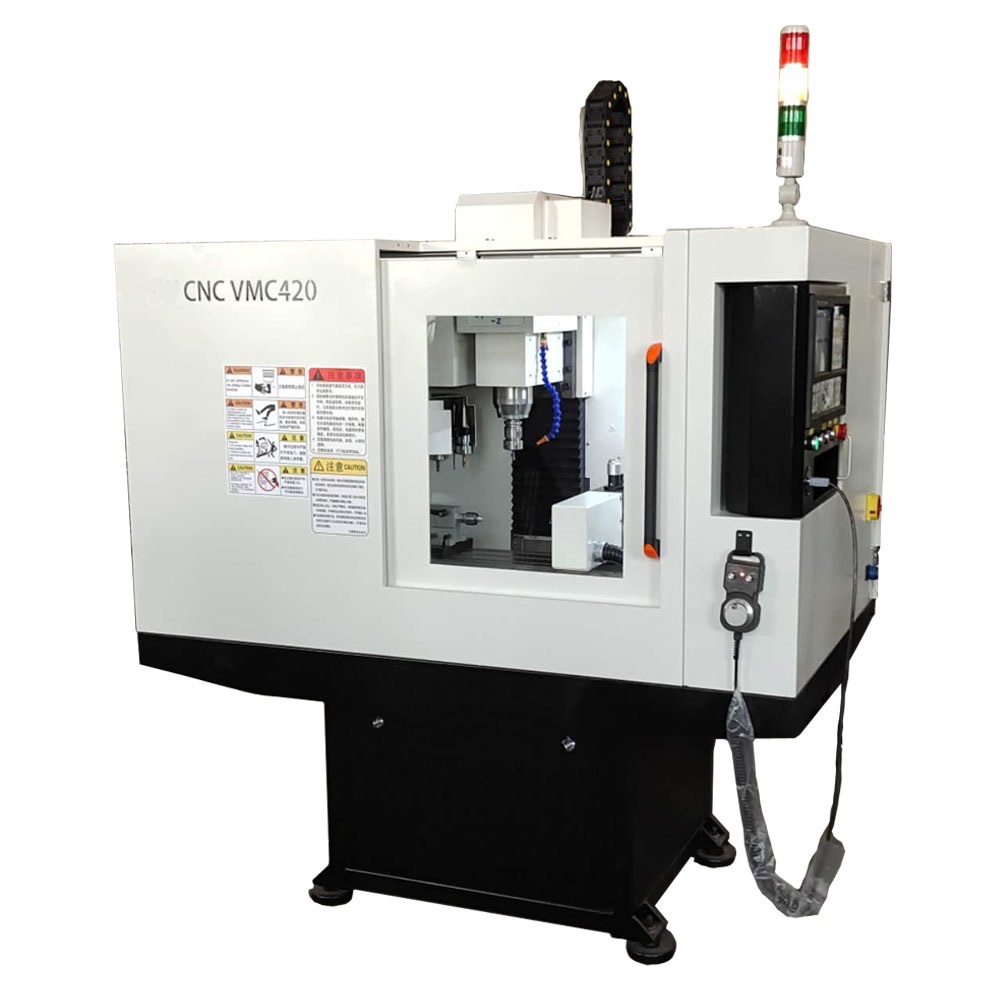

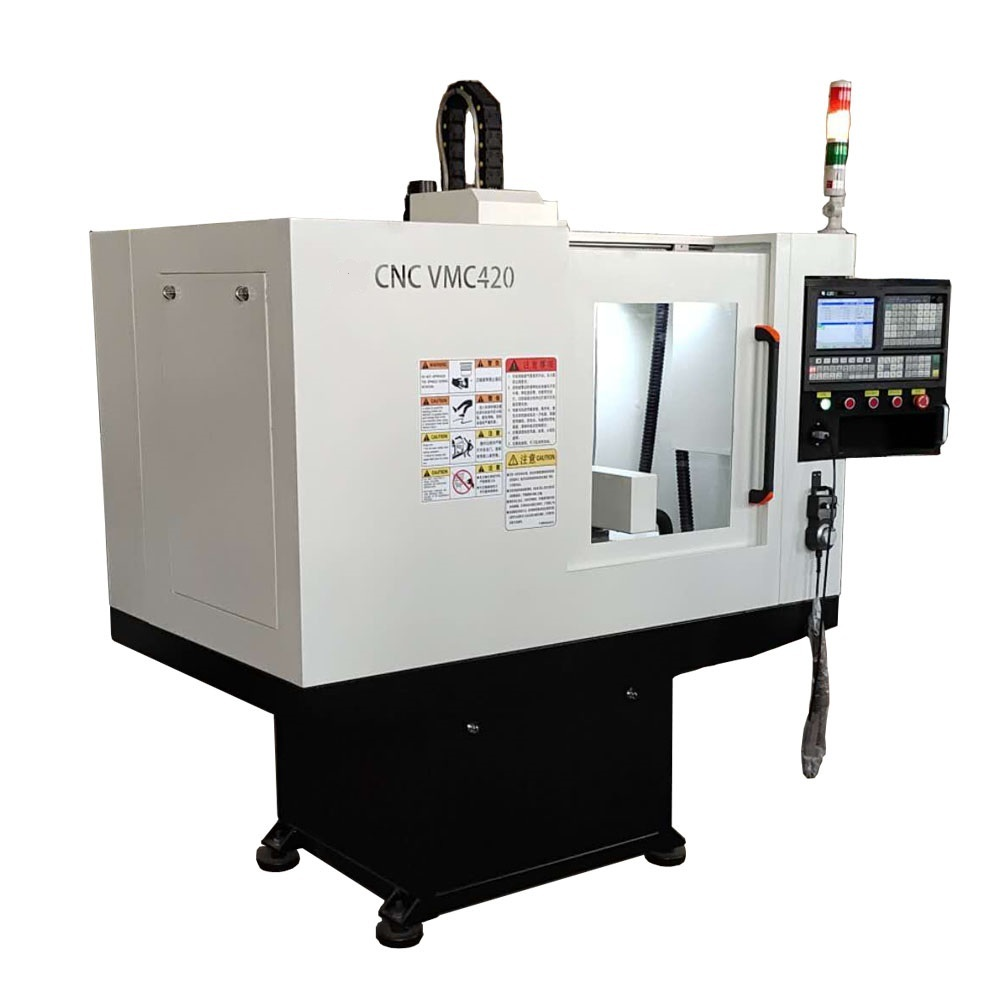

VMC 420 Cnc Milling Machine Aluminum Steel Bt30 Spindle Mini Mill Factory Manufacture price wood router 3 4 Axis

Description:

VMC 420 Cnc Milling Machine Aluminum Steel Bt30 Spindle Mini Mill Factory Manufacture price wood router 3 4 Axis1 Worktable area length x width 550 x 198mm2 T slot width × slot number M8×33 Maximum l


product details

VMC 420 Cnc Milling Machine Aluminum Steel Bt30 Spindle Mini Mill  Factory Manufacture price wood router 3 4 Axis

1 Worktable area length x width 550 x 198mm

2 T slot width × slot number M8×3

3 Maximum load-bearing capacity of the worktable is 80kg

4 X axis stroke 360mm

5 The Y-axis stroke is 200mm

6 Z axis stroke 300mm

7 The distance from the center of the spindle to the front of the column is 205mm

8 Spindle cone hole BT30

9 3.2kw 100mm built-in motor Spindle speed 0~24000r/min

10 Power source : 220V 50Hz.

11 X and Y axis power 750W

12 Z-axis power 750W

13 Fast movement 15000mm/min

14 The min.  Unit set for machine feed is 0.001mm

15 Maximum tool size 20mm

16 Positioning accuracy 0.01mm

17 Repeated positioning accuracy 0.005mm

18 Gross weight is 700kg

19 Package size: 1570*1100*2100mm


mmexport1599294604991mmexport1599294600466mmexport1599294602758
