VMC 425 Cnc Milling Machine Aluminum Steel Bt30 Spindle Mini Mill 12 tools ATC Factory Manufacture price wood router 3 4 Axis

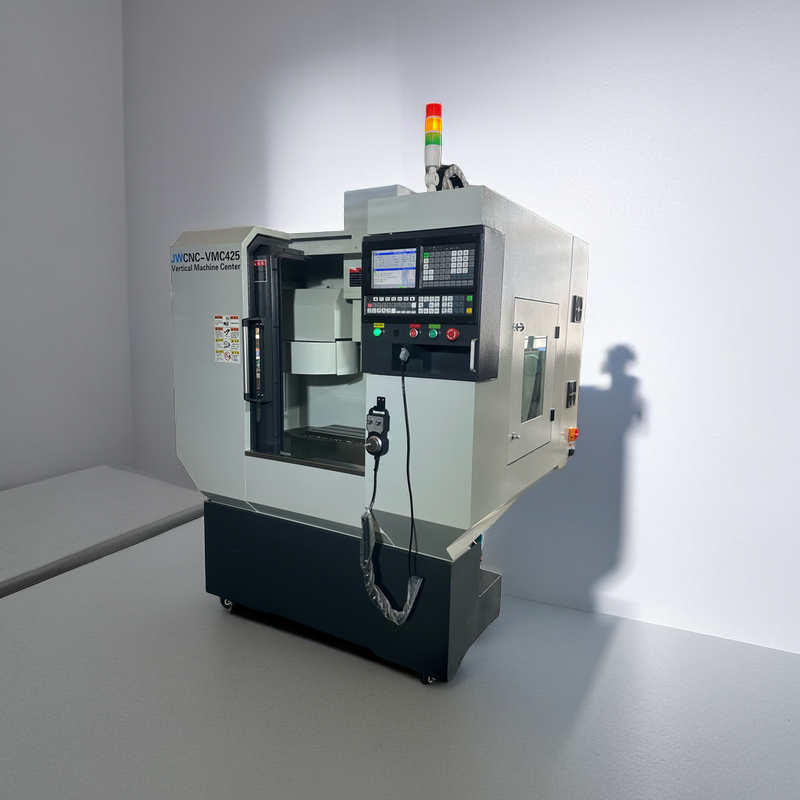

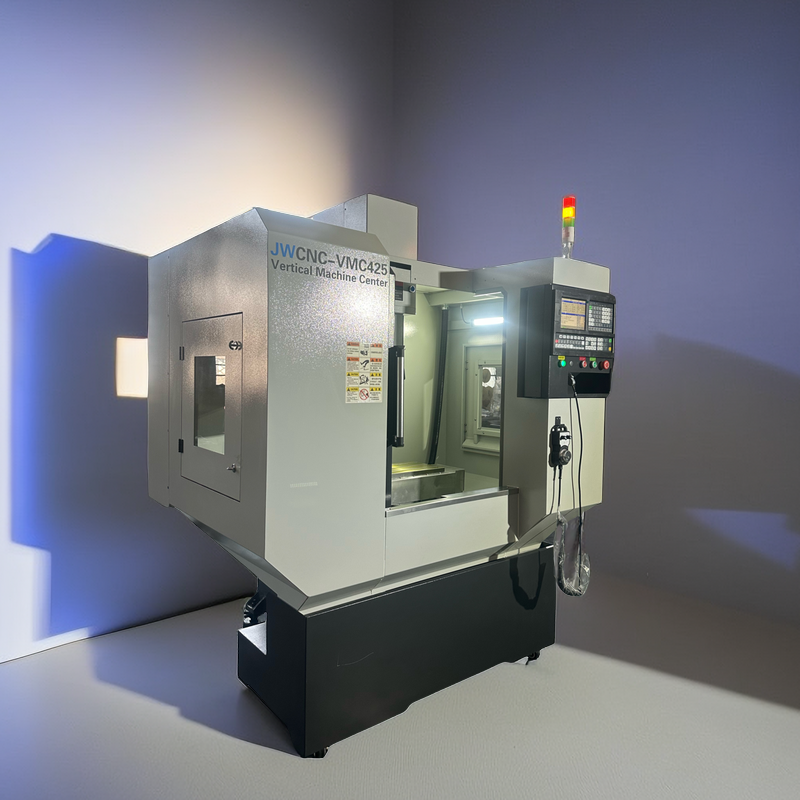

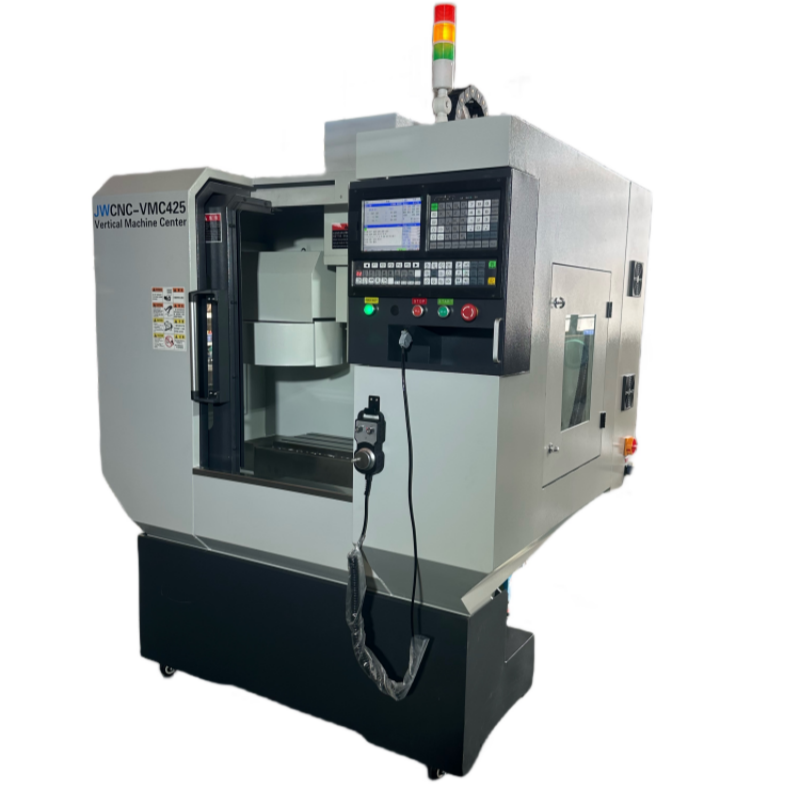

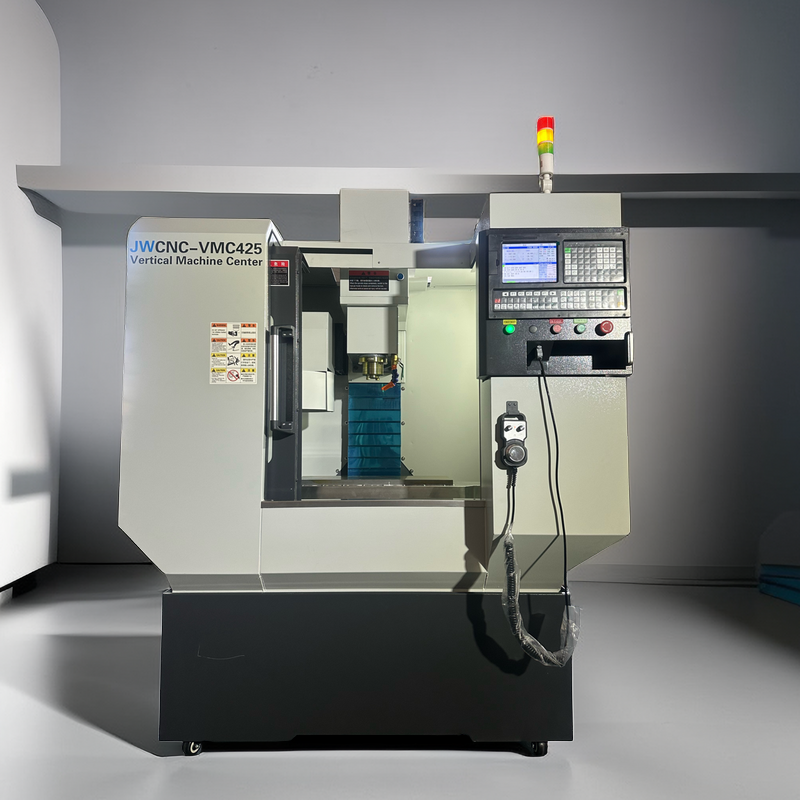

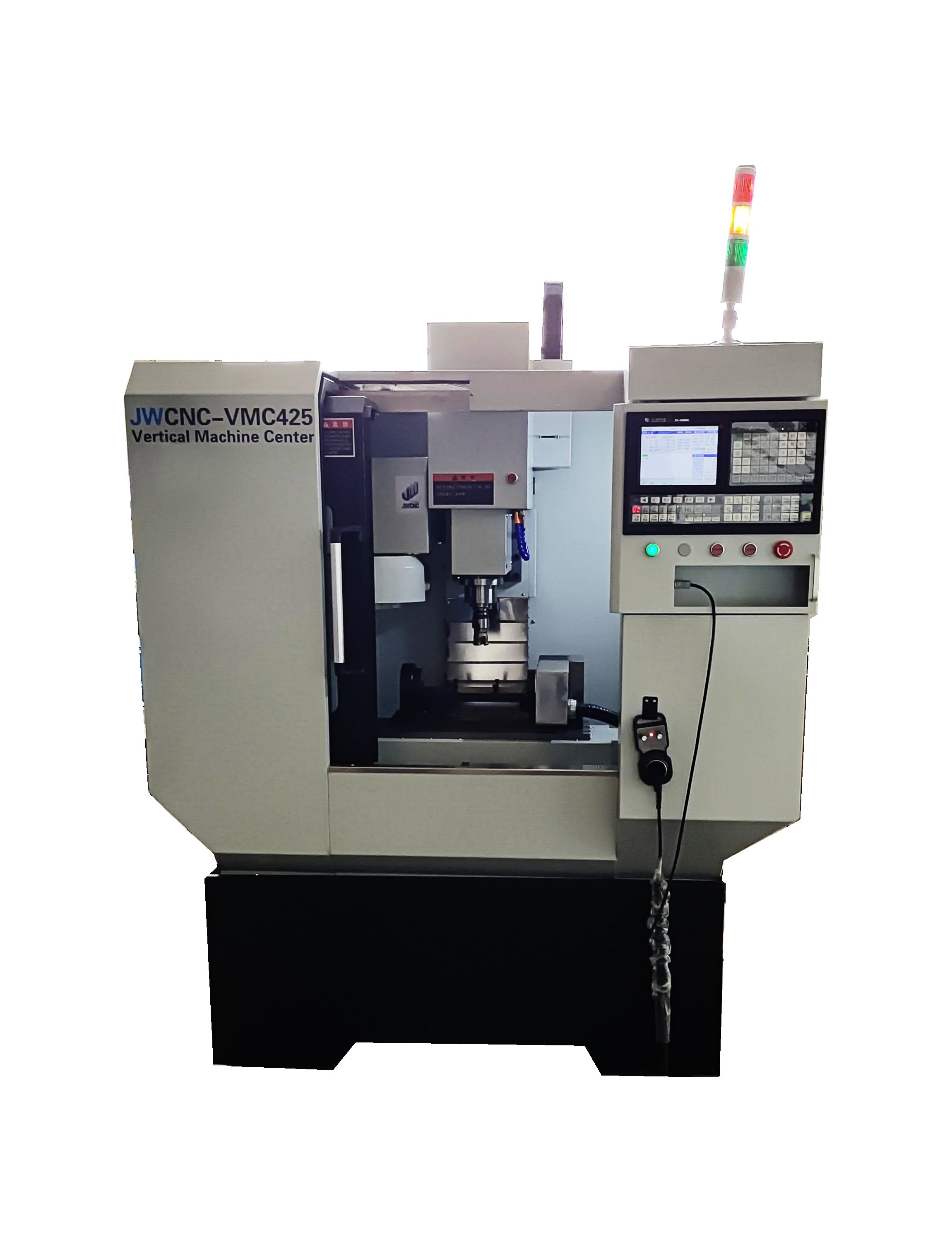

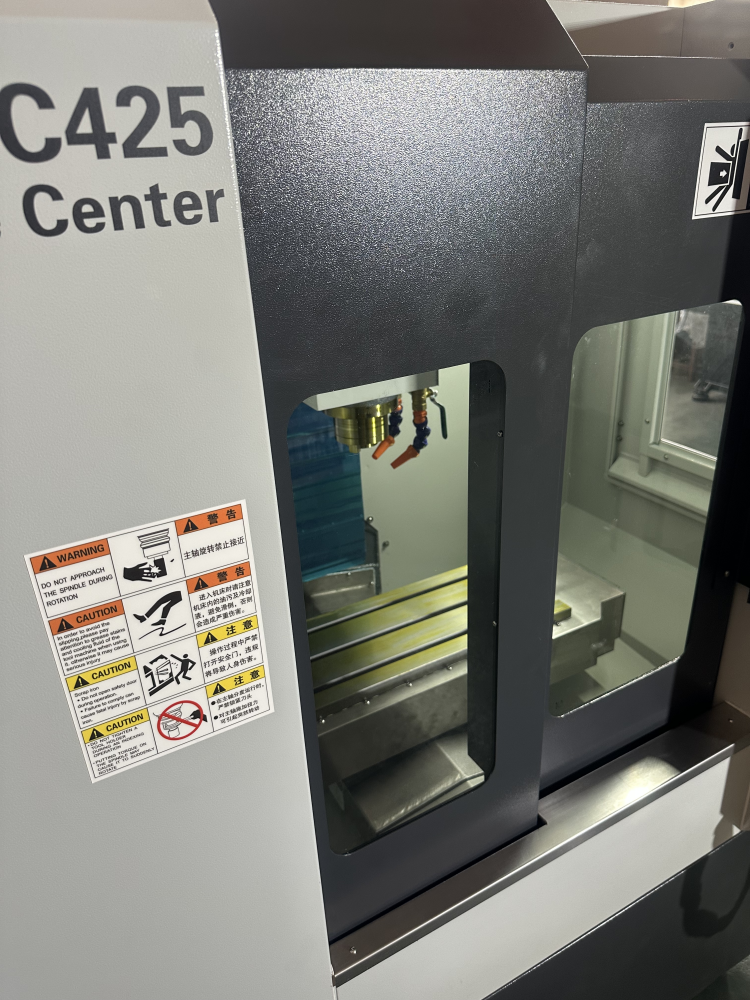

VMC425 Cnc milling machine

XYZ Stroke：400*250*400mm

XYZ Guide Railway:  HIWIN X Y 20 Z 25

XYZ Ball Screw :TBI X Y 2005 Z 2505 C7

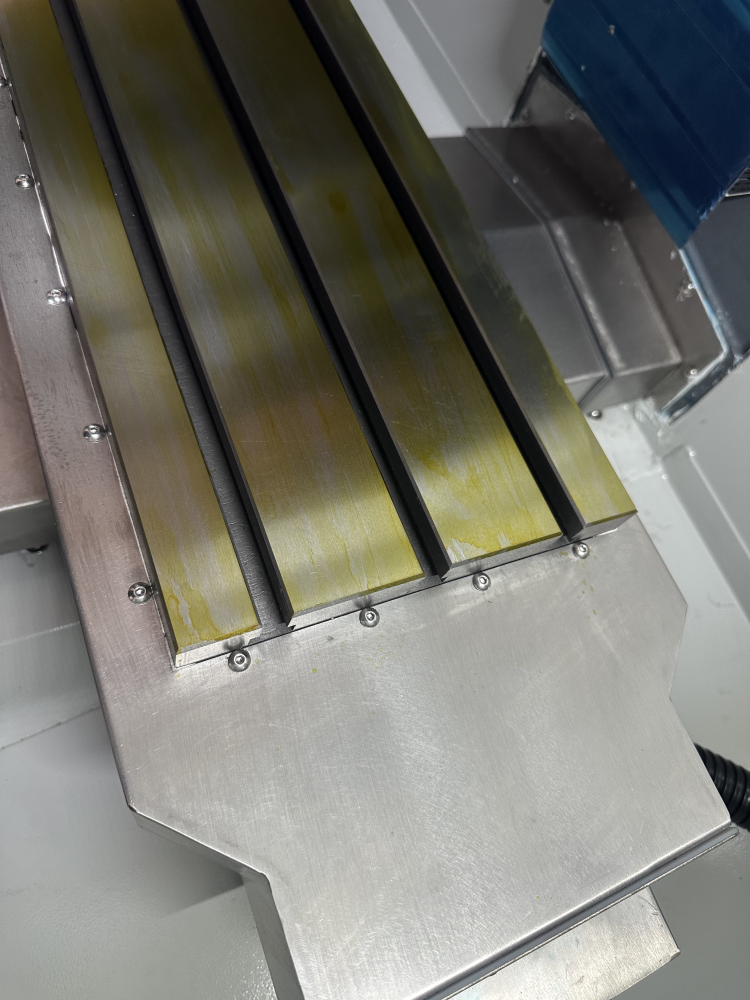

Worktable Size 630*200mm

T slot: M10*3

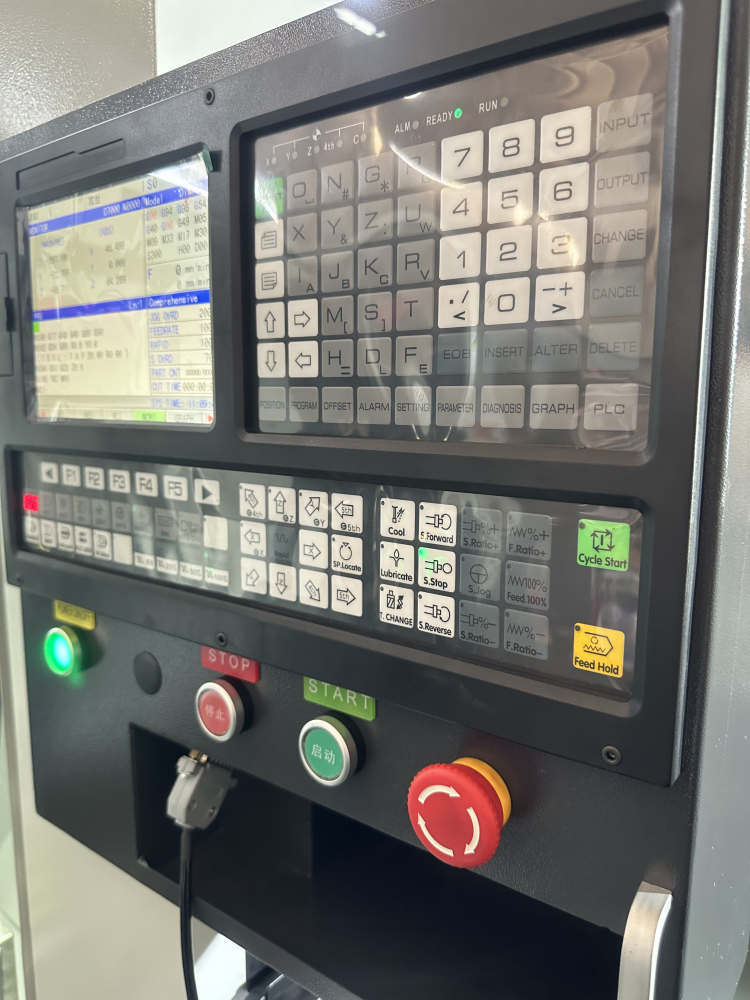

CNC Controller: KYCNC 1000MC

Spindle : bt30 belt-driving spindle

Z axis motor: 750W Servo motor with brake

 XY axis motor: 600W Servo motor

Tool Magazine :12pcs disc tool changer

Frame material: HT250 grey casting iron

XY ZY XZ Verticality : +/-0.01mm/200mm

Table Flatness :+/-0.01mm/200mm

Repeatability 0.01mm

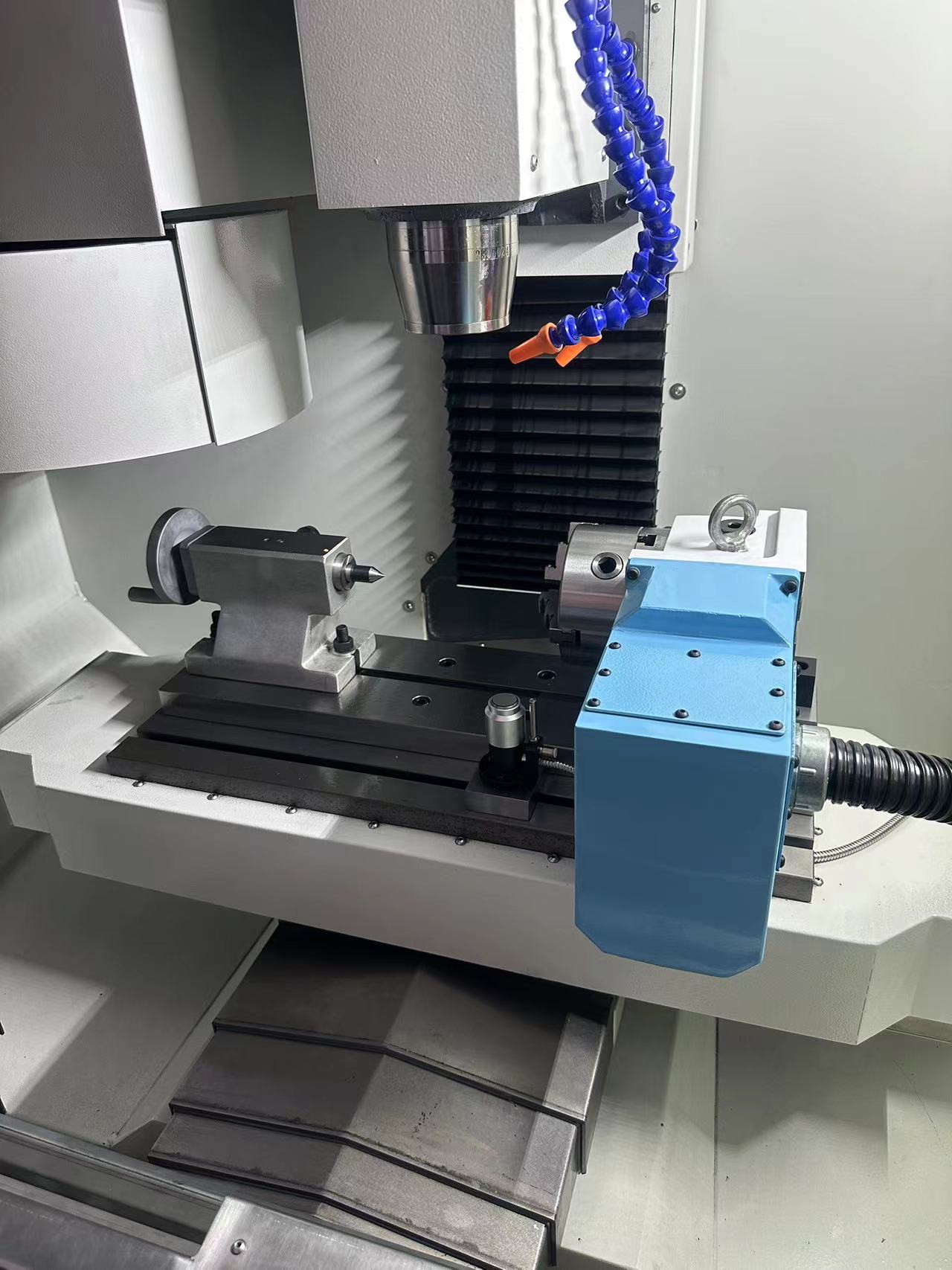

Optional :4th axis Worm gear reducer with Diameter 100mm

Accessories:  water pump,tank,spray pipe, work light

Dinension 1600*1200*1900mm

Net Weight :1200kg
